Search › Model › KUN40

KUN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,173 parts · 213 categories

4,173 items

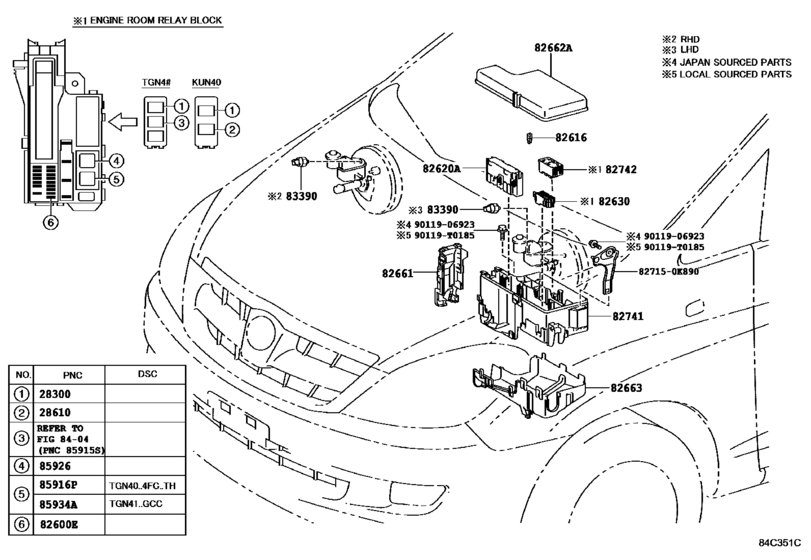

Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- )) 22

#	OEM	Part name
28300	90987-02025	Relay
28610	28610-27010	Relay Assy, Glow Plug
28610	28610-54390	Relay Assy, Glow Plug
82600	90982-09013	Fusible Link
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09024	Instrument Panel Fuse
82616	82616-58010	Puller, Fuse
82620	82620-71012	Block Assy, Fusible Link
82630	82631-0K010	Holder Assy, Fuse
82661	82661-0K010	Cover, Relay Block, No.1
82662	82662-0K083	Cover, Relay Block, Upper, No.1
82662	82662-0K210	Cover, Relay Block, Upper, No.1
82663	82663-0K010	Cover, Relay Block, Lower
82741	82741-0K010	Block, Engine Room Relay
82742	82744-0K010	Block, Engine Room Relay, No.2
83390	83390-30100	Switch Assy, Vacuum Warning
90119	90119-T0185	New Genuine Part
827150	82715-0K890	Bracket,wiring Harness Clamp
9011906923	90119-06923	BOLT WWASHER

OEM	Part name	Category
28610-27010	Relay Assy, Glow Plug	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
28610-54390	Relay Assy, Glow Plug	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82616-58010	Puller, Fuse	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82620-71012	Block Assy, Fusible Link	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82631-0K010	Holder Assy, Fuse	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82661-0K010	Cover, Relay Block, No.1	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82662-0K083	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82662-0K210	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82663-0K010	Cover, Relay Block, Lower	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82715-0K890	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82741-0K010	Block, Engine Room Relay	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
82744-0K010	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
83390-30100	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90119-06923	BOLT WWASHER	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90119-T0185	New Genuine Part	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09013	Fusible Link	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09020	Fusible Link	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09021	Fusible Link	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90982-09024	Instrument Panel Fuse	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
90987-02025	Relay	Switch & Relay & Computer ([07.2011 - ] ENGINE ROOM (1107- ))
