Search › Model › KUN40

KUN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,173 parts · 213 categories

4,173 items

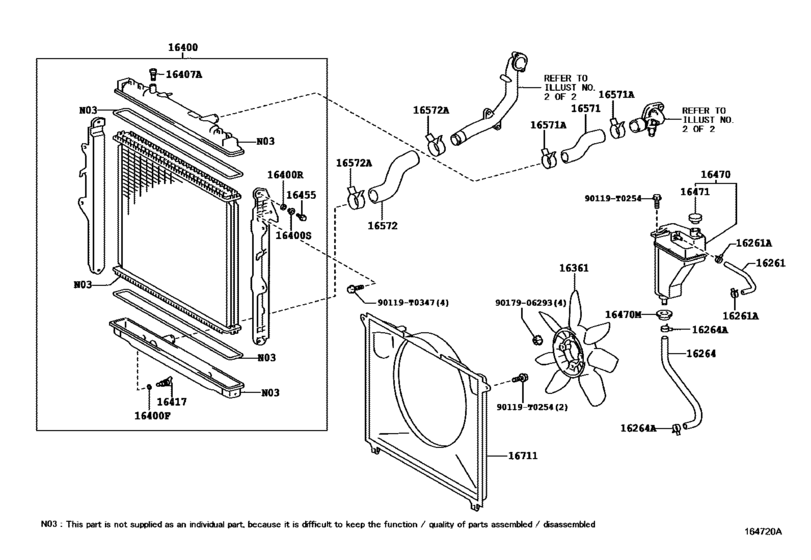

Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND) 72

#	OEM	Part name
16206	16206-0L010	Pipe Sub-Assy, Water By-Pass
16206	16206-30050	Pipe Sub-Assy, Water By-Pass
16207	16207-0L020	Pipe Sub-Assy, Water By-Pass, No.2
16207	16207-30120	Pipe Sub-Assy, Water By-Pass, No.2
16258	16258-0L010	Gasket(For Heater Return)
16258	16258-67010	Gasket(For Heater Return)
16261	16261-0L040	Hose, Water By-Pass
16261	16261-0L060	Hose, Water By-Pass
16261	90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90466-T0033	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90466-T0046	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-0L050	Hose, Water By-Pass, No.1
16261	16261-30060	Hose, Water By-Pass, No.1
16261	90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90466-T0010	Clip(For Water By-Pass Hose No.1)
16264	16264-0L040	Hose, Water By-Pass, No.2
16264	90466-T0030	Clamp Or Clip(For Water By-Pass Hose No.2)
16264	90466-T0031	Clamp Or Clip(For Water By-Pass Hose No.2)
16267	16267-0L010	Hose, Water By-Pass, No.3
16267	16267-30080	Hose, Water By-Pass, No.3
16267	90467-19022	Clip(For Ventilation Hose No.2)
16267	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16279	16208-0L020	Pipe, Water By-Pass, No.3
16281	16281-0L020	Hose, Water By-Pass, No.4
16282	16282-0L020	Hose, Water By-Pass, No.5
16321	16321-0L010	Inlet, Water
16321	16321-30040	Inlet, Water
16331	16304-0L010	Outlet, Water
16331	16331-0L040	Outlet, Water
16331	16331-30110	Outlet, Water
16331	90916-03118	Thermostat - *WAX 82-95C
16341	16341-0L010	Gasket, Water Outlet
16341	16341-30020	Gasket, Water Outlet
16346	16346-0K010	Gasket, Thermostat
16346	16346-67010	Gasket, Thermostat
16346	16346-30010	Gasket, Thermostat
16361	16361-0L020	Fan
16400	16400-0L220	Radiator Assy
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	16444-75180	Bushing(For Radiator)
16400	16445-0C180	Collar(For Radiator)
16407	16407-67240	Cock Sub-Assy, Radiator Drain
16417	16417-0C180	Cock Sub-Assy, Radiator Drain
16417	16417-21280	Cock Sub-Assy, Radiator Drain
16455	91651-B0820	Bolt, Radiator Side Support Plate
16455	90080-11347	New Genuine Part
16470	16470-0L011	Tank Assy, Radiator Reserve
16470	16470-0L013	Tank Assy, Radiator Reserve
16470	16470-0L012	Tank Assy, Radiator Reserve
16470	16470-0L050	Tank Assy, Radiator Reserve
16470	16470-0L052	Tank Assy, Radiator Reserve
16470	16470-0L051	Tank Assy, Radiator Reserve
16470	90480-T0004	Grommet
16471	16401-30011	Cap Sub-Assy, Reserve Tank
16471	16401-30013	Cap Sub-Assy, Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16401-30012	Cap Sub-Assy, Reserve Tank
16571	16571-0L060	Hose, Radiator, Inlet
16571	90466-T0012	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-T0024	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0L060	Hose, Radiator, Outlet
16711	16711-0L090	Shroud, Fan
16711	16711-0L130	Shroud, Fan
90105	90105-T0053	New Genuine Part
90105	90105-T0119	BOLT FLANGE
90119	90119-T0254	New Genuine Part
90119	90119-T0347	BOLT WWASHER
90119	90119-T0067	New Genuine Part
90119	90119-T0134	BOLT WWASHER
90178	90178-T0018	NUT FLANGE
9017906293	90179-06293	NUT
9046400574	90464-00574	Clamp Or Clip(For Water By-Pass Hose)

OEM	Part name	Category
16206-0L010	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16206-30050	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16207-0L020	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16207-30120	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16208-0L020	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16258-0L010	Gasket(For Heater Return)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16258-67010	Gasket(For Heater Return)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16261-0L040	Hose, Water By-Pass	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16261-0L050	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16261-0L060	Hose, Water By-Pass	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16261-30060	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16264-0L040	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16267-0L010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16267-30080	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16281-0L020	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16282-0L020	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16304-0L010	Outlet, Water	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16321-0L010	Inlet, Water	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16321-30040	Inlet, Water	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16331-0L040	Outlet, Water	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16331-30110	Outlet, Water	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16341-0L010	Gasket, Water Outlet	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16341-30020	Gasket, Water Outlet	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16346-0K010	Gasket, Thermostat	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16346-30010	Gasket, Thermostat	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16346-67010	Gasket, Thermostat	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16361-0L020	Fan	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16400-0L220	Radiator Assy	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16401-30011	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16401-30012	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16401-30013	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16407-67240	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16417-0C180	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16444-75180	Bushing(For Radiator)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16445-0C180	Collar(For Radiator)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L011	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L012	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L013	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L051	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16470-0L052	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16571-0L060	Hose, Radiator, Inlet	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16572-0L060	Hose, Radiator, Outlet	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16711-0L090	Shroud, Fan	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
16711-0L130	Shroud, Fan	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90080-11347	New Genuine Part	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90105-T0053	New Genuine Part	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90105-T0119	BOLT FLANGE	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90119-T0067	New Genuine Part	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90119-T0134	BOLT WWASHER	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90119-T0254	New Genuine Part	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90119-T0347	BOLT WWASHER	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90178-T0018	NUT FLANGE	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90179-06293	NUT	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90464-00574	Clamp Or Clip(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0010	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0012	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0024	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0030	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0031	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0033	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90466-T0046	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90467-19022	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90480-T0004	Grommet	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
90916-03118	Thermostat - *WAX 82-95C	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([01.2012 - ] EURO 4 REGULATION (1201- )2KDFTV..IND)
