KUN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,173 parts · 213 categories

← Back to categories

4,173 items

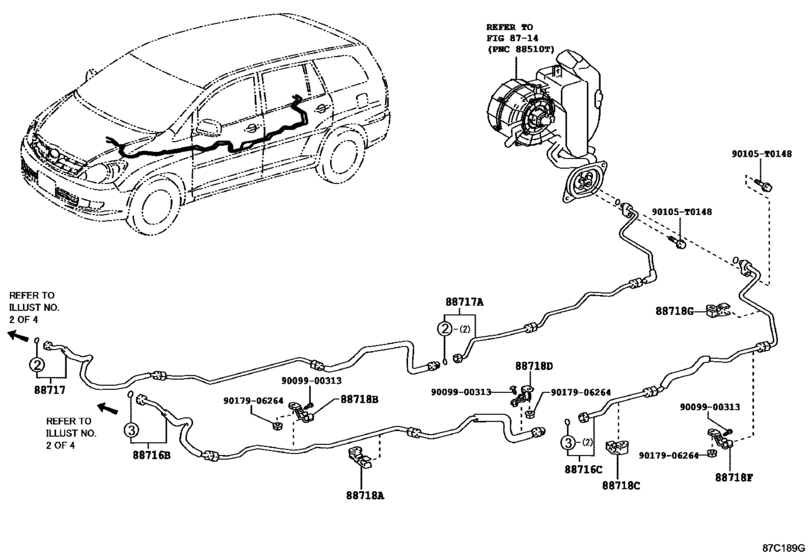

Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND) 11

#	OEM	Part name
88716	88706-0K031	Pipe, Cooler Refrigerant Liquid, B
88716	88706-0K040	Pipe, Cooler Refrigerant Liquid, C
88717	88707-0K301	Pipe, Cooler Refrigerant Suction, No.1
88717	88707-0K310	Pipe, Cooler Refrigerant Suction, A
88718	88718-0K140	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-0K130	Clamp(For Cooler Refrigerant Pipe), No.2
88718	88718-0K340	Clamp(For Cooler Refrigerant Pipe), No.3
88718	88718-0K150	Clamp(For Cooler Refrigerant Pipe), No.4
90105	90105-T0148	New Genuine Part
9009900313	90099-00313	New Genuine Part
9017906264	90179-06264	NUT, WWASHER

OEM	Part name	Category
88706-0K031	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88706-0K040	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88707-0K301	Pipe, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88707-0K310	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88718-0K130	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88718-0K140	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88718-0K150	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
88718-0K340	Clamp(For Cooler Refrigerant Pipe), No.3	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
90099-00313	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
90105-T0148	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)
90179-06264	NUT, WWASHER	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] REAR (1107- )GCC,IDN,SA,TH ; (1110- )MA ; (1201 - )IND)

Source: Public OEM parts-catalog data
