Search › Model › KUN40

KUN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,173 parts · 213 categories

4,173 items

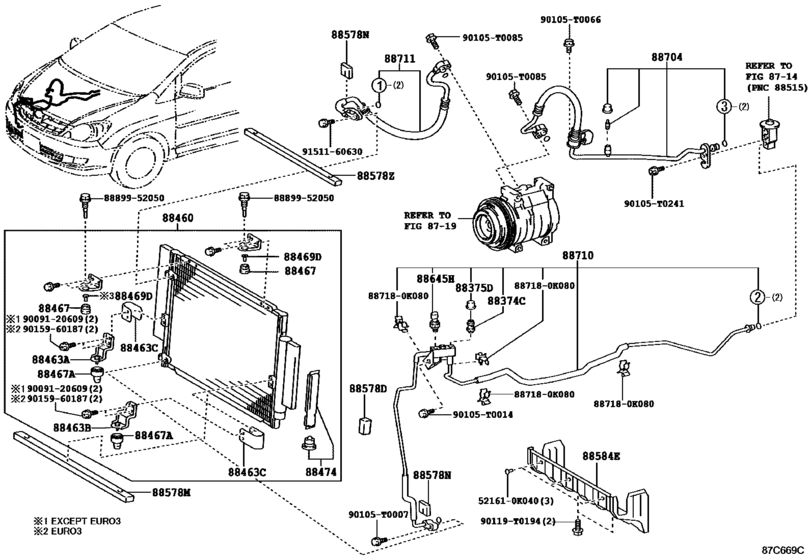

Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND) 44

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88460	88460-0K170	Condenser Assy, Cooler
88460	88460-0K171	Condenser Assy, Cooler
88463	88463-0K170	Bracket, Cooler Condenser, No.2
88463	88463-0K180	Bracket, Cooler Condenser, No.3
88463	88463-0K580	Bracket, Cooler Condenser, No.3
88463	88463-37370	Bracket, Cooler Condenser, No.1
88467	88467-12180	Cushion, Cooler Condenser, No.1
88467	88467-0K140	Cushion, Cooler Condenser, No.2
88469	88469-52010	Collar, Condenser Bracket, No.1
88474	88474-17010	Dryer, Cooler
88474	88474-47020	Dryer, Cooler
88578	88578-0K190	Packing, Cooler Pipe, No.1
88578	88578-0K171	Packing, Cooling Pipe, No.3
88578	88578-0K410	Packing, Cooling Pipe, No.4
88578	88578-0K840	Packing, Cooler, No.1
88584	88584-0K041	Guide, Cooler Air
88645	88645-34010	Switch, Pressure
88645	88645-04040	Switch, Pressure
88704	88704-0K210	Hose Sub-Assy, Suction
88704	88704-0K211	Hose Sub-Assy, Suction
88704	88704-0K222	Hose Sub-Assy, Suction
88704	88704-0KB80	Hose Sub-Assy, Suction
88710	88710-0K160	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-0K161	Tube Assy, Air Conditioner
88710	88710-0K620	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-0K621	Tube Assy, Air Conditioner
88711	88711-0K140	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-0K150	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-0K151	Hose, Cooler Refrigerant Discharge, No.1
90105	90105-T0007	BOLT FLANGE
90105	90105-T0014	BOLT FLANGE
90105	90105-T0066	BOLT FLANGE
90105	90105-T0085	BOLT FLANGE
90105	90105-T0241	BOLTFLANGE
90119	90119-T0194	BOLT, W-WASHER
521610	52161-0K040	Clip
521610	52161-02020	Clip
887180	88718-0K080	Pipe, Cooler Refrigerant Suction, No.2
8889952050	88899-52050	Cover, Evaporator
9009120609	90091-20609	BOLT
9015960187	90159-60187	SCREW
9151160630	91511-60630	BOLT

OEM	Part name	Category
52161-02020	Clip	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
52161-0K040	Clip	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88460-0K170	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88460-0K171	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88463-0K170	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88463-0K180	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88463-0K580	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88463-37370	Bracket, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88467-0K140	Cushion, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88467-12180	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88469-52010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88474-47020	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88578-0K171	Packing, Cooling Pipe, No.3	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88578-0K190	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88578-0K410	Packing, Cooling Pipe, No.4	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88578-0K840	Packing, Cooler, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88584-0K041	Guide, Cooler Air	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88645-04040	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88645-34010	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88704-0K210	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88704-0K211	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88704-0K222	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88704-0KB80	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88710-0K160	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88710-0K161	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88710-0K620	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88710-0K621	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88711-0K140	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88711-0K150	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88711-0K151	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88718-0K080	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
88899-52050	Cover, Evaporator	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90105-T0007	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90105-T0014	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90105-T0066	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90105-T0085	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90105-T0241	BOLTFLANGE	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90119-T0194	BOLT, W-WASHER	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
90159-60187	SCREW	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)
91511-60630	BOLT	Heating & Air Conditioning - Cooler Piping ([01.2012 - ] FRONT SINGLE AIR CONDITIONER (1201- )KUN40..IND)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 213
Collected: 2026-08-04
