Search › Model › KUN40

KUN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,173 parts · 213 categories

4,173 items

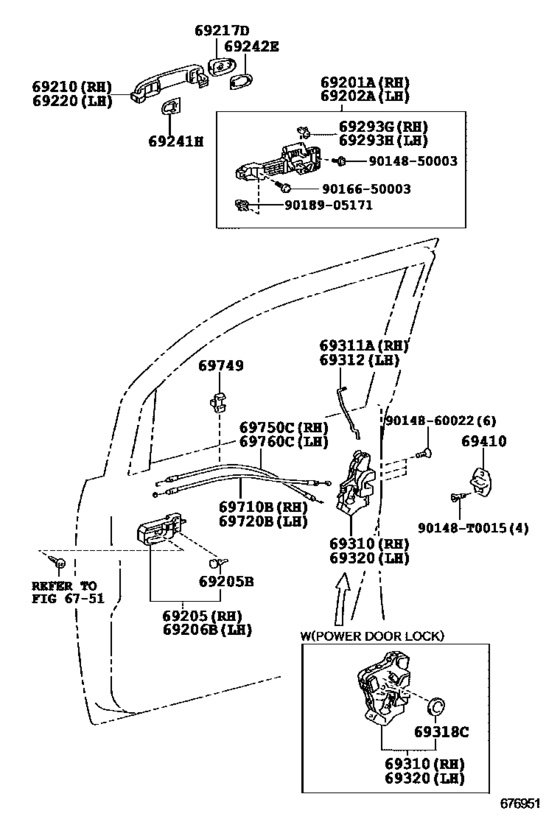

Front Door Lock & Handle ([07.2011 - ] (1107- )) 44

#	OEM	Part name
69201	69201-0K030	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-0K030	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0K030-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-0K030-E1	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69205	69205-0K040-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-0K040-E2	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0K030-E0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0K030-E1	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0K040-E0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0K040-E2	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-0K900	Handle Assy, Front Door, Outside Rh
69210	69211-0K110	Handle Assy, Front Door, Outside Rh
69210	69210-0K030	Handle Assy, Front Door, Outside Rh
69217	69217-0K180	Cover, Front Door Outside Handle
69217	69217-0K190	Cover, Front Door Outside Handle
69217	69217-0K907	Cover, Front Door Outside Handle
69217	69217-0K908	Cover, Front Door Outside Handle
69217	69217-0K200	Cover, Front Door Outside Handle
69217	69217-0K210	Cover, Front Door Outside Handle
69241	69241-06020	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69241	69241-42020	Pad, Front Door Outside Handle, Rh
69242	69242-0D120	Pad, Front Door Outside Handle, Rear
69242	69242-42010	Pad, Front Door Outside Handle, Lh
69293	69293-10010	Snap, Front Door Outside Handle
69293	69293-10020	Snap, Front Door Outside Handle
69310	69030-0K080	Lock Assy, Front Door, Rh
69310	69310-0K070	Lock Assy, Front Door, Rh
69311	69311-0K050	Rod, Front Door Lock Open, Rh
69312	69312-0K050	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69320	69040-0K080	Lock Assy, Front Door, Lh
69320	69320-0K070	Lock Assy, Front Door, Lh
69410	69410-0K050	Plate Assy, Front Door Lock Striker
69710	69710-0K080	Cable Assy, Front Door Lock Remote Control, Rh
69749	69749-32040	Clamp, Front Door Lock Link
69750	69750-0K080	Cable Assy, Front Door Inside Locking, Rh
69760	69760-0K080	Cable Assy, Front Door Inside Locking Lh
90148	90148-T0015	SCREWHEXALOBULAR
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9016650003	90166-50003	New Genuine Part
9018905171	90189-05171	New Genuine Part

OEM	Part name	Category
69030-0K080	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69040-0K080	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69201-0K030	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69202-0K030	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69205-0K030-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69205-0K030-E1	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69205-0K040-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69205-0K040-E2	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69206-0K030-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69206-0K030-E1	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69206-0K040-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69206-0K040-E2	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69210-0K030	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69210-0K900	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69211-0K110	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K180	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K190	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K200	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K210	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K907	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69217-0K908	Cover, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69241-06020	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69241-42020	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69242-0D120	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69242-42010	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69293-10010	Snap, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69293-10020	Snap, Front Door Outside Handle	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69310-0K070	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69311-0K050	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69312-0K050	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69320-0K070	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69410-0K050	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69710-0K080	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69749-32040	Clamp, Front Door Lock Link	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69750-0K080	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
69760-0K080	Cable Assy, Front Door Inside Locking Lh	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90148-60022	BOLT	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90148-T0015	SCREWHEXALOBULAR	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90166-50003	New Genuine Part	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90189-05171	New Genuine Part	Front Door Lock & Handle ([07.2011 - ] (1107- ))
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([07.2011 - ] (1107- ))
