Search › Model › KUN165
KUN165

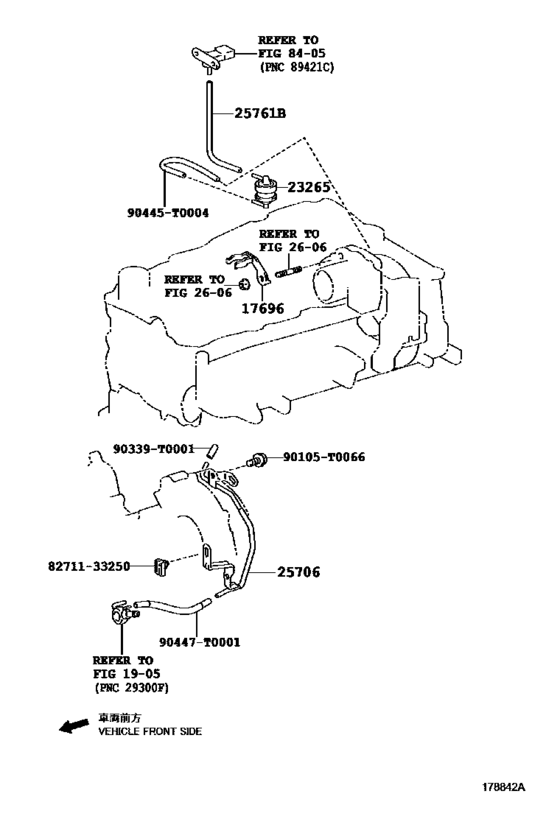

Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) 9
| # | OEM | Part name |
|---|---|---|
| 17696 | 17696-0L010 | Bracket, Gas Filter |
| 23265 | 90917-11036 | Filter, Gas, No.1 |
| 25706 | 25706-0L010 | Pipe Sub-Assy, Vacuum Transmitting, No.1 |
| 25761 | 25761-0L010 | Hose, Vaccum Transmitting, No.1 |
| 90105 | 90105-T0066 | BOLT FLANGE |
| 90339 | 90339-T0001 | New Genuine Part |
| 90445 | 90445-T0004 | New Genuine Part |
| 90447 | 90447-T0001 | New Genuine Part |
| 8271133250 | 82711-33250 | Wire, Fuse To Fuse(for Combustion Heater) |
| OEM | Part name | Category |
|---|---|---|
| 17696-0L010 | Bracket, Gas Filter | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 25706-0L010 | Pipe Sub-Assy, Vacuum Transmitting, No.1 | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 25761-0L010 | Hose, Vaccum Transmitting, No.1 | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 82711-33250 | Wire, Fuse To Fuse(for Combustion Heater) | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 90105-T0066 | BOLT FLANGE | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 90339-T0001 | New Genuine Part | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 90445-T0004 | New Genuine Part | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 90447-T0001 | New Genuine Part | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
| 90917-11036 | Filter, Gas, No.1 | Vacuum Piping ([03.2016 - ] (1603- )2KDFTV) |
