KUN165

Toyota FORTUNER · 2016 · 3,181 parts · 208 categories

3,181 items

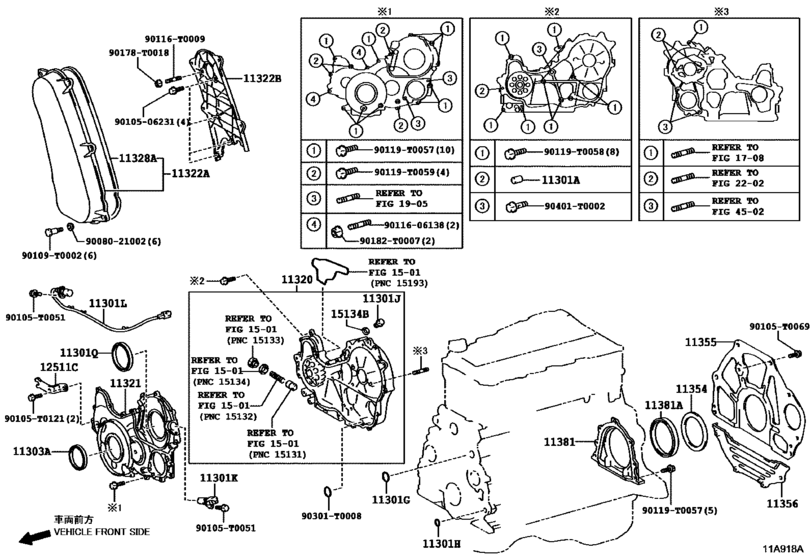

Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV) 36

#	OEM	Part name
11301	90250-T0007	Pin, Straight(For Timing Gear Case)
11301	90301-T0010	Ring, O(For Timing Gear Case, Upper)
11301	90301-T0012	Ring, O(For Timing Gear Case, Lower)
11301	90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)
11301	90919-05025	Sensor, Crank Position
11301	90919-05050	Sensor, Crank Position No.2
11301	90080-31098	Seal, Type T Oil(For Injection Pump) - OIL(FOR TIMING CHAIN OR BELT COVER)
11303	90311-T0054	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11320	11320-0L030	Case Assy, Timing Gear
11321	11321-0L010	Case, Timing Gear
11322	11332-0L010	Cover, Timing Belt, No.1
11322	11322-0L010	Cover, Timing Belt, No.2
11328	11328-30020	Gasket, Timing Belt Cover, No.1
11354	11354-0L020	Seal, Flywheel Housing Dust
11355	11355-0L010	Plate, Rear End
11356	11356-0L021	Plate, Rear End, No.2
11381	11381-0K010	Retainer, Engine Rear Oil Seal
11381	11381-67020	Retainer, Engine Rear Oil Seal
11381	90311-T0046	Seal, Engine Rear Oil
12511	12511-0L020	Bracket, Alternator
15134	15134-0L030	Gasket, Oil Pump Relief Valve
90105	90105-T0051	New Genuine Part
90105	90105-T0069	New Genuine Part
90105	90105-T0121	New Genuine Part
90109	90109-T0002	BOLT
90116	90116-T0009	New Genuine Part
90119	90119-T0057	New Genuine Part
90119	90119-T0058	New Genuine Part
90119	90119-T0059	New Genuine Part
90178	90178-T0018	NUT FLANGE
90182	90182-T0007	New Genuine Part
90301	90301-T0008	RING O
90401	90401-T0002	New Genuine Part
9008021002	90080-21002	WASHER
9010506231	90105-06231	BOLT WASHER BASED
9011606138	90116-06138	New Genuine Part

OEM	Part name	Category
11320-0L030	Case Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11321-0L010	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11322-0L010	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11328-30020	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11332-0L010	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11354-0L020	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11355-0L010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11356-0L021	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11381-0K010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
11381-67020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
12511-0L020	Bracket, Alternator	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
15134-0L030	Gasket, Oil Pump Relief Valve	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90080-31098	Seal, Type T Oil(For Injection Pump) - OIL(FOR TIMING CHAIN OR BELT COVER)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-06231	BOLT WASHER BASED	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-T0051	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-T0069	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-T0121	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90109-T0002	BOLT	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90116-06138	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90116-T0009	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90119-T0057	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90119-T0058	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90119-T0059	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90178-T0018	NUT FLANGE	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90182-T0007	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90250-T0007	Pin, Straight(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90301-T0008	RING O	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90301-T0010	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90301-T0012	Ring, O(For Timing Gear Case, Lower)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90311-T0046	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90311-T0054	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90401-T0002	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90919-05025	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90919-05050	Sensor, Crank Position No.2	Timing Gear Cover & Rear End Plate ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
