Search › Model › KUN165

KUN165

Toyota FORTUNER · 2016 · 3,181 parts · 208 categories

3,181 items

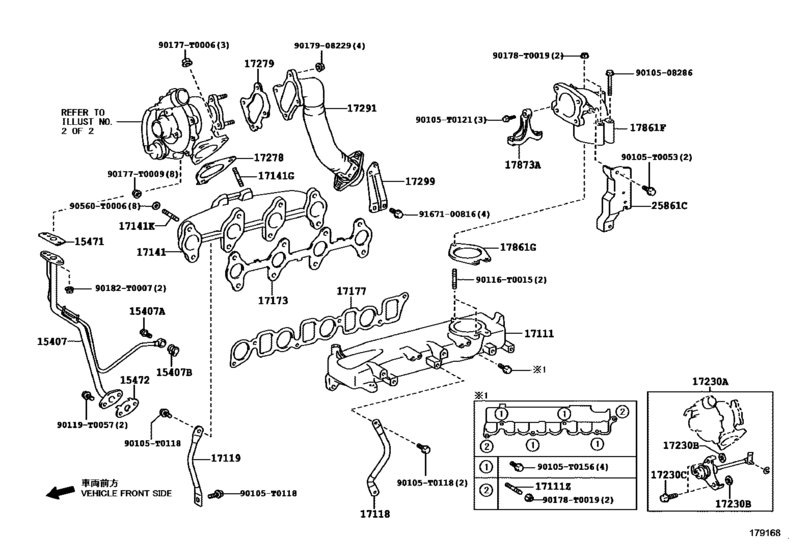

Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV) 44

#	OEM	Part name
15407	15407-0L012	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90430-T0006	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-0L011	Gasket, Turbo Oil Inlet
15472	15472-0L010	Gasket, Turbo Oil Outlet, No.1
17111	17111-0L020	Manifold, Intake
17111	90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)
17118	17118-0L030	Stay, Manifold
17119	17118-0L040	Stay, Manifold, No.2
17141	17141-0L010	Manifold, Exhaust
17141	90116-10219	Bolt, Stud(For Turbocharger)
17141	90126-10035	Bolt, Stud(For Exhaust Manifold, Rh)
17173	17173-0L011	Gasket, Exhaust Manifold To Head
17177	17177-0L011	Gasket, Intake Manifold To Head, No.1
17230	17230-39085	Repair Actuaor Assy, W/bracket
17230	90201-06042	Washer, Plate(For Repair Actuator Set)
17230	90201-06043	Washer, Plate(For Repair Actuator Set)
17230	90201-06044	Washer, Plate(For Repair Actuator Set)
17230	90201-06045	Washer, Plate(For Repair Actuator Set)
17230	91621-60620	Bolt, W/washer(For Repair Actuator Set)
17278	17278-0L010	Gasket, Turbo To Exhaust Manifold
17279	17279-0L021	Gasket, Turbine Outlet Elbow
17291	17291-0L030	Elbow, Turbine Outlet
17299	17299-0L010	Stay, Turbine Outlet Elbow
17299	17299-30030	Stay, Turbine Outlet Elbow
17861	17861-0L020	Connector, Intake Air
17861	26171-0L010	Gasket, Intake Air Connector
17873	26127-0L010	Bracket, Intake Air Connector, No.2
25861	25861-30051	Bracket, Vacuum Switching Valve
90105	90105-T0053	New Genuine Part
90105	90105-T0118	BOLT FLANGE
90105	90105-T0121	New Genuine Part
90105	90105-T0156	New Genuine Part
90116	90116-T0015	New Genuine Part
90119	90119-T0057	New Genuine Part
90177	90177-T0006	Nut, Exhaust Pipe Set Stud Bolt
90177	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
90177	90177-T0009	New Genuine Part
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90182	90182-T0007	New Genuine Part
90560	90560-T0006	New Genuine Part
9010508286	90105-08286	New Genuine Part
9017908229	90179-08229	NUT
9167100816	91671-00816	New Genuine Part

OEM	Part name	Category
15407-0L012	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
15471-0L011	Gasket, Turbo Oil Inlet	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
15472-0L010	Gasket, Turbo Oil Outlet, No.1	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17111-0L020	Manifold, Intake	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17118-0L030	Stay, Manifold	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17118-0L040	Stay, Manifold, No.2	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17141-0L010	Manifold, Exhaust	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17173-0L011	Gasket, Exhaust Manifold To Head	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17177-0L011	Gasket, Intake Manifold To Head, No.1	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17230-39085	Repair Actuaor Assy, W/bracket	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17278-0L010	Gasket, Turbo To Exhaust Manifold	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17279-0L021	Gasket, Turbine Outlet Elbow	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17291-0L030	Elbow, Turbine Outlet	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17299-0L010	Stay, Turbine Outlet Elbow	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17299-30030	Stay, Turbine Outlet Elbow	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
17861-0L020	Connector, Intake Air	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
25861-30051	Bracket, Vacuum Switching Valve	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
26127-0L010	Bracket, Intake Air Connector, No.2	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
26171-0L010	Gasket, Intake Air Connector	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90105-08286	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90105-T0053	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90105-T0118	BOLT FLANGE	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90105-T0121	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90105-T0156	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90116-10219	Bolt, Stud(For Turbocharger)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90116-T0015	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90119-T0057	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90126-10035	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90177-T0006	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90177-T0009	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90178-T0019	Nut (For Connecting Rod Swivel)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90179-08229	NUT	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90182-T0007	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90201-06042	Washer, Plate(For Repair Actuator Set)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90201-06043	Washer, Plate(For Repair Actuator Set)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90201-06044	Washer, Plate(For Repair Actuator Set)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90201-06045	Washer, Plate(For Repair Actuator Set)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90430-T0006	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
90560-T0006	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
91621-60620	Bolt, W/washer(For Repair Actuator Set)	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)
91671-00816	New Genuine Part	Manifold ([03.2016 - ] MANIFOLD (1603- )2KDFTV)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 208
Collected: 2026-08-03
