Search › Model › KUN165

KUN165

Toyota FORTUNER · 2016 · 3,181 parts · 208 categories

3,181 items

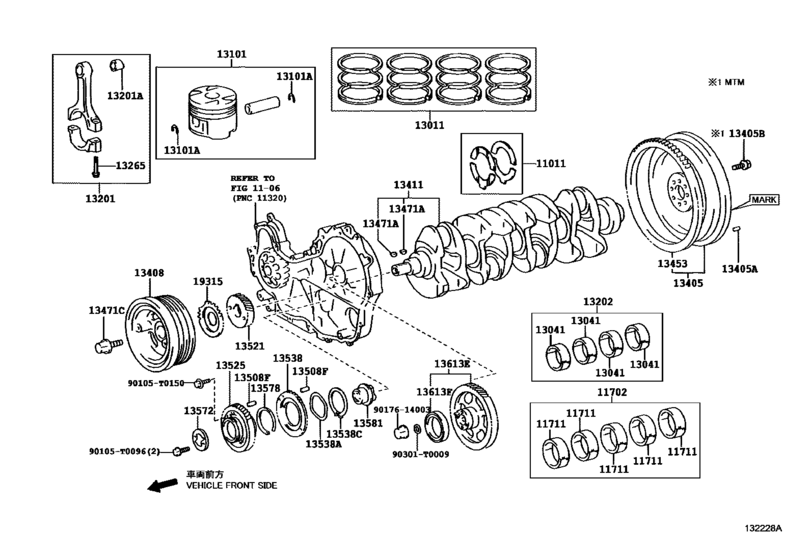

Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV) 56

#	OEM	Part name
11011	11011-0L020	Washer Set, Crankshaft Thrust
11011	11012-30010	Washer Set, Crankshaft Thrust
11011	11013-30010	Washer Set, Crankshaft Thrust
11702	11704-30020	Bearing Set, Crankshaft (0.25)
11702	11705-30020	Bearing Set, Crankshaft (0.50)
11711	11701-0L020-02	Bearing, Crankshaft
11711	11701-0L020-03	Bearing, Crankshaft
11711	11701-0L020-04	Bearing, Crankshaft
11711	11701-0L020-05	Bearing, Crankshaft
11711	11701-0L020-06	Bearing, Crankshaft
13011	13011-0L040	Ring Set, Piston
13011	13013-30030	Ring Set, Piston
13011	13013-30031	Ring Set, Piston (0.50)
13041	13041-0L020-02	Bearing, Connecting Rod
13041	13041-0L020-03	Bearing, Connecting Rod
13041	13041-0L020-04	Bearing, Connecting Rod
13041	13041-0L020-05	Bearing, Connecting Rod
13041	13041-0L020-06	Bearing, Connecting Rod
13101	13101-0L051-01	Piston Sub-Assy, W/pin
13101	13101-0L051-02	Piston Sub-Assy, W/pin
13101	13101-0L051-03	Piston Sub-Assy, W/pin
13101	13103-0L051	Piston Sub-Assy, W/pin
13101	90520-37014	Ring, Hole Snap(For Piston Pin)
13201	13201-0L011	Rod Sub-Assy, Connecting
13201	13201-30041	Rod Sub-Assy, Connecting
13201	90999-73157	Bush(For Connecting Rod Small End)
13202	13204-30020	Bearing Set, Connecting Rod (0.25)
13202	13205-30020	Bearing Set, Connecting Rod (0.50)
13265	13265-67021	Bolt, Connecting Rod
13405	13405-0L021	Flywheel Sub-Assy
13405	13405-0L110	Flywheel Sub-Assy
13405	90250-T0008	Pin, Straight(For End Plate)
13405	90105-T0113	Bolt, Hexagon(For Drive Plate Setting) - FLYWHEEL SET
13408	13408-0L020	Pulley Sub-Assy, Crankshaft
13411	13401-0L100	Crankshaft
13411	13401-30060	Crankshaft
13453	13453-0L010	Gear, Flywheel Ring
13471	90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90119-T0218	Bolt(For Crankshaft Pulley Set)
13508	90250-T0011	Pin, Straight - STRAIGHT(FOR IDLE GEAR)
13521	13521-0L010	Gear Or Sprocket, Crankshaft Timing
13525	13508-0L010	Gear, Idle, No.1
13538	13538-0L010	Gear, Idle Sub, No.2
13538	90206-T0001	Washer, Wave
13538	90520-T0032	Ring, Shaft Snap
13572	13572-0L010	Plate, Idle Gear Thrust
13578	13578-0L010	Spring, Idle Gear
13581	13581-0L010	Shaft, Idle Gear, No.1
13613	13603-0L010	Gear, Injection
13613	90363-T0013	Bearing, Radial Ball
19315	19315-0L010	Plate, Crank Angle Sensor, No.1
90105	90105-T0096	BOLT WASHER BASED H
90105	90105-T0150	Bolt, Hexagon
90301	90301-T0009	RING O
9017614003	90176-14003	NUT CAP

OEM	Part name	Category
11011-0L020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11012-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11013-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11701-0L020-02	Bearing, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11701-0L020-03	Bearing, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11701-0L020-04	Bearing, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11701-0L020-05	Bearing, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11701-0L020-06	Bearing, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11704-30020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
11705-30020	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13011-0L040	Ring Set, Piston	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13013-30030	Ring Set, Piston	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13013-30031	Ring Set, Piston (0.50)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13041-0L020-02	Bearing, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13041-0L020-03	Bearing, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13041-0L020-04	Bearing, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13041-0L020-05	Bearing, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13041-0L020-06	Bearing, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13101-0L051-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13101-0L051-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13101-0L051-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13103-0L051	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13201-0L011	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13201-30041	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13204-30020	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13205-30020	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13265-67021	Bolt, Connecting Rod	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13401-0L100	Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13401-30060	Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13405-0L021	Flywheel Sub-Assy	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13405-0L110	Flywheel Sub-Assy	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13408-0L020	Pulley Sub-Assy, Crankshaft	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13453-0L010	Gear, Flywheel Ring	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13508-0L010	Gear, Idle, No.1	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13521-0L010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13538-0L010	Gear, Idle Sub, No.2	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13572-0L010	Plate, Idle Gear Thrust	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13578-0L010	Spring, Idle Gear	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13581-0L010	Shaft, Idle Gear, No.1	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
13603-0L010	Gear, Injection	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
19315-0L010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90105-T0096	BOLT WASHER BASED H	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90105-T0113	Bolt, Hexagon(For Drive Plate Setting) - FLYWHEEL SET	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90105-T0150	Bolt, Hexagon	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90119-T0218	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90176-14003	NUT CAP	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90206-T0001	Washer, Wave	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90250-T0008	Pin, Straight(For End Plate)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90250-T0011	Pin, Straight - STRAIGHT(FOR IDLE GEAR)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90301-T0009	RING O	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90363-T0013	Bearing, Radial Ball	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90520-37014	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90520-T0032	Ring, Shaft Snap	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
90999-73157	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([03.2016 - ] (1603- )2KDFTV)
