KUN165

Toyota FORTUNER · 2016 · 3,181 parts · 208 categories

3,181 items

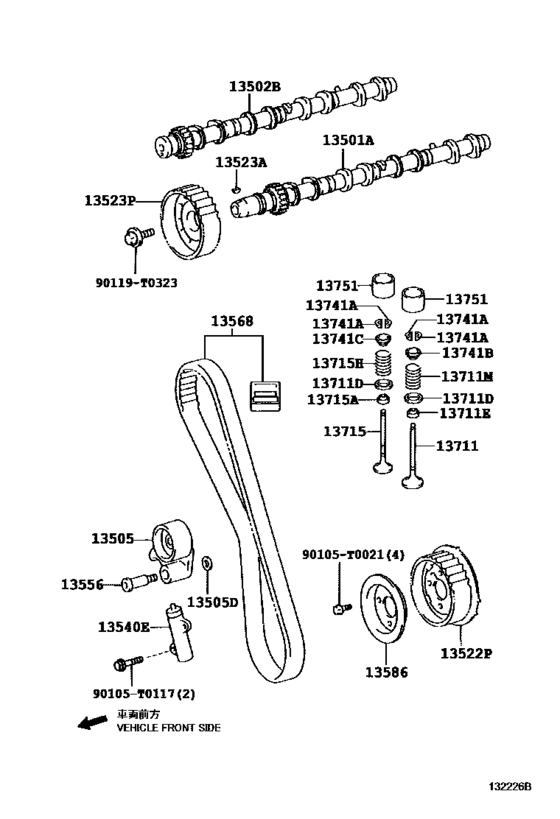

Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV) 59

#	OEM	Part name
13501	13501-0L010	Camshaft Sub-Assy, Intake
13501	13501-30040	Camshaft
13502	13502-0L010	Camshaft Sub-Assy, Exhaust - NO.2
13502	13502-30030	Camshaft, No.2
13505	13505-0L010	Idler Sub-Assy, Timing Belt, No.1
13505	90560-T0007	Spacer(For Timing Belt Idler) - PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13522	13524-0L010	Pulley, Pump Drive Shaft
13522	13524-30010	Pulley, Pump Drive Shaft
13523	90280-T0001	Key, Woodruff(For Timing Gear)
13523	13523-0L010	Pulley, Camshaft Timing
13540	13540-0L010	Tensioner Assy, Chain, No.1
13556	13556-0L010	Shaft, Timing Belt Idler
13568	13568-09131	Belt, Timing
13586	13586-0L010	Flange, Camshaft Timing Pulley, No.2
13711	13711-0L010	Valve, Intake
13711	90560-T0008	Washer, Plate(For Valve Spring Seat)
13711	90080-31099	Seal, Intake Valve Stem Oil
13711	90080-50404	Spring, Compression(For Inner)
13715	13715-0L010	Valve, Exhaust
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13741	13741-0L010	Retainer, Valve Spring
13751	13751-46030	Lifter, Valve
13751	13751-46040	Lifter, Valve
13751	13751-46050	Lifter, Valve
13751	13751-46060	Lifter, Valve
13751	13751-46070	Lifter, Valve
13751	13751-46080	Lifter, Valve
13751	13751-46090	Lifter, Valve
13751	13751-46100	Lifter, Valve
13751	13751-46110	Lifter, Valve
13751	13751-46120	Lifter, Valve
13751	13751-46130	Lifter, Valve
13751	13751-46140	Lifter, Valve
13751	13751-46150	Lifter, Valve
13751	13751-46160	Lifter, Valve
13751	13751-46170	Lifter, Valve
13751	13751-46180	Lifter, Valve
13751	13751-46190	Lifter, Valve
13751	13751-46200	Lifter, Valve
13751	13751-46210	Lifter, Valve
13751	13751-46220	Lifter, Valve
13751	13751-46230	Lifter, Valve
13751	13751-46240	Lifter, Valve
13751	13751-46250	Lifter, Valve
13751	13751-46260	Lifter, Valve
13751	13751-46270	Lifter, Valve
13751	13751-46280	Lifter, Valve
13751	13751-46290	Lifter, Valve
13751	13751-46300	Lifter, Valve
13751	13751-46310	Lifter, Valve
13751	13751-46320	Lifter, Valve
13751	13751-46330	Lifter, Valve
13751	13751-46340	Lifter, Valve
13751	13751-46350	Lifter, Valve
13751	13751-46360	Lifter, Valve
13751	13751-46370	Lifter, Valve
90105	90105-T0021	New Genuine Part
90105	90105-T0117	BOLT FLANGE
90119	90119-T0323	New Genuine Part

OEM	Part name	Category
13501-0L010	Camshaft Sub-Assy, Intake	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13501-30040	Camshaft	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13502-0L010	Camshaft Sub-Assy, Exhaust - NO.2	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13502-30030	Camshaft, No.2	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13505-0L010	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13523-0L010	Pulley, Camshaft Timing	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13524-0L010	Pulley, Pump Drive Shaft	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13524-30010	Pulley, Pump Drive Shaft	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13540-0L010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13556-0L010	Shaft, Timing Belt Idler	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13568-09131	Belt, Timing	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13586-0L010	Flange, Camshaft Timing Pulley, No.2	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13711-0L010	Valve, Intake	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13715-0L010	Valve, Exhaust	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13741-0L010	Retainer, Valve Spring	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46030	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46040	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46050	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46060	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46070	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46080	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46090	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46100	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46110	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46120	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46130	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46140	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46150	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46160	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46170	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46180	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46190	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46200	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46210	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46220	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46230	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46240	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46250	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46260	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46270	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46280	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46290	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46300	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46310	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46320	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46330	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46340	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46350	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46360	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
13751-46370	Lifter, Valve	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90080-31099	Seal, Intake Valve Stem Oil	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90080-50404	Spring, Compression(For Inner)	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-T0021	New Genuine Part	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90105-T0117	BOLT FLANGE	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90119-T0323	New Genuine Part	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90280-T0001	Key, Woodruff(For Timing Gear)	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90560-T0007	Spacer(For Timing Belt Idler) - PLATE(FOR DISTRIBUTOR DRIVE GEAR)	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90560-T0008	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([12.2015 - ] (1512- )1KDFTV,2KDFTV)
