KUN125

Toyota HILUX-4RUNNER-TRUCK · 2015 · 3,542 parts · 227 categories

3,542 items

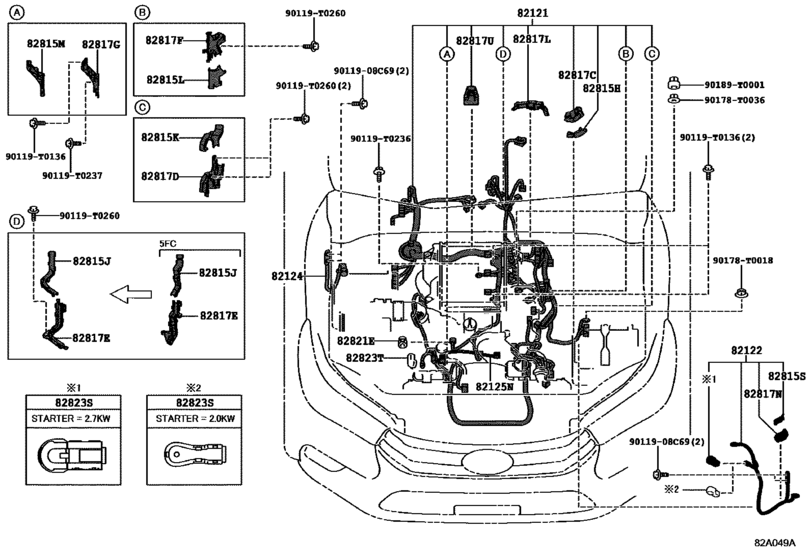

Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#) 27

#	OEM	Part name
82121	82121-KK480	Wire, Engine
82121	82121-KKN00	Wire, Engine
82122	82122-KK180	Wire, Engine, No.2
82125	82125-KK010	Wire, Engine, No.5
82815	82815-0K600	Cover, Wiring Harness Protector No.6
82815	82815-0K340	Cover, Wiring Harness Protector, No.7
82815	82815-0K780	Cover, Wiring Harness Protector, No.8
82815	82815-0K580	Cover, Wiring Harness Protector, No.9
82815	82815-0K810	Cover, Wiring Harness Protector, No.10
82815	82815-0K800	Cover, Wiring Harness Protector, No.15
82817	82817-0K630	Protector, Wiring Harness, No.4
82817	82817-0KA10	Protector, Wiring Harness, No.5
82817	82817-0K340	Protector, Wiring Harness, No.6
82817	82817-0K610	Protector, Wiring Harness, No.7
82817	82817-0K650	Protector, Wiring Harness, No.8
82817	82817-0KA90	Protector, Wiring Harness, No.13
82823	82823-30100	Cap, Terminal, No.1
82823	82823-35050	Cap, Terminal, No.1
82823	82823-22050	Cap, Terminal, No.1
90119	90119-T0136	New Genuine Part
90119	90119-T0236	New Genuine Part
90119	90119-T0237	BOLT WWASHER
90119	90119-T0260	New Genuine Part
90178	90178-T0018	NUT FLANGE
90178	90178-T0036	New Genuine Part
90189	90189-T0001	Grommet, Screw(For Glow Plug)
9011908	90119-08C69	New Genuine Part

OEM	Part name	Category
82121-KK480	Wire, Engine	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82121-KKN00	Wire, Engine	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82122-KK180	Wire, Engine, No.2	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82125-KK010	Wire, Engine, No.5	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K340	Cover, Wiring Harness Protector, No.7	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K580	Cover, Wiring Harness Protector, No.9	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K600	Cover, Wiring Harness Protector No.6	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K780	Cover, Wiring Harness Protector, No.8	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K800	Cover, Wiring Harness Protector, No.15	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82815-0K810	Cover, Wiring Harness Protector, No.10	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0K340	Protector, Wiring Harness, No.6	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0K610	Protector, Wiring Harness, No.7	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0K630	Protector, Wiring Harness, No.4	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0K650	Protector, Wiring Harness, No.8	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0KA10	Protector, Wiring Harness, No.5	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82817-0KA90	Protector, Wiring Harness, No.13	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82823-30100	Cap, Terminal, No.1	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
82823-35050	Cap, Terminal, No.1	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90119-08C69	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90119-T0136	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90119-T0236	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90119-T0237	BOLT WWASHER	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90119-T0260	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90178-T0018	NUT FLANGE	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90178-T0036	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
90189-T0001	Grommet, Screw(For Glow Plug)	Wiring & Clamp ([05.2015 - ] ENGINE (1505- )KUN125,126,13#)
