KUN122

Toyota HILUX-4RUNNER-TRUCK · 2015 · 2,717 parts · 208 categories
KUN122 ×

← Back to categories

2,717 items

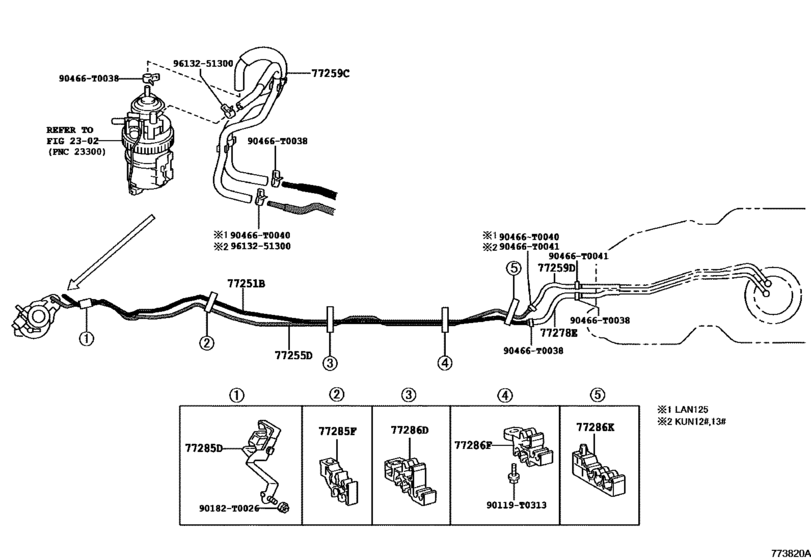

Fuel Tank & Tube ([05.2015 - ] FUEL TUBE,W/O(FUEL COOLER) (1505- )KUN12#,13#,LAN125) 16
#OEMPart name
77251 77251-KK050 Tube, Fuel Main
77255 77255-KK060 Tube, Fuel Return
77259 23801-0L030 Hose, Fuel
77259 77259-71060 Hose, Fuel, No.1 - FUEL, NO.2 (FOR RETURN TUBE, NO.2)
77278 95338-10022 Hose, Fuel
77285 77285-0K240 Clamp, Fuel Tube, No.1
77285 77285-0K230 Clamp, Fuel Tube, No.1
77286 77286-0K170 Clamp, Fuel Tube, No.2
77286 77286-0K150 Clamp, Fuel Tube, No.2
77286 77286-0K220 Clamp, Fuel Tube, No.2
90119 90119-T0313 New Genuine Part
90182 90182-T0026 New Genuine Part
90466 90466-T0038 Clip(For Air Hose No.3)
90466 90466-T0040 Clip(For Fuel Hose No.2)
90466 90466-T0041 Clip(For Fuel Vapor Feed Hose, No.2)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
