Search › Model › KUN112
KUN112

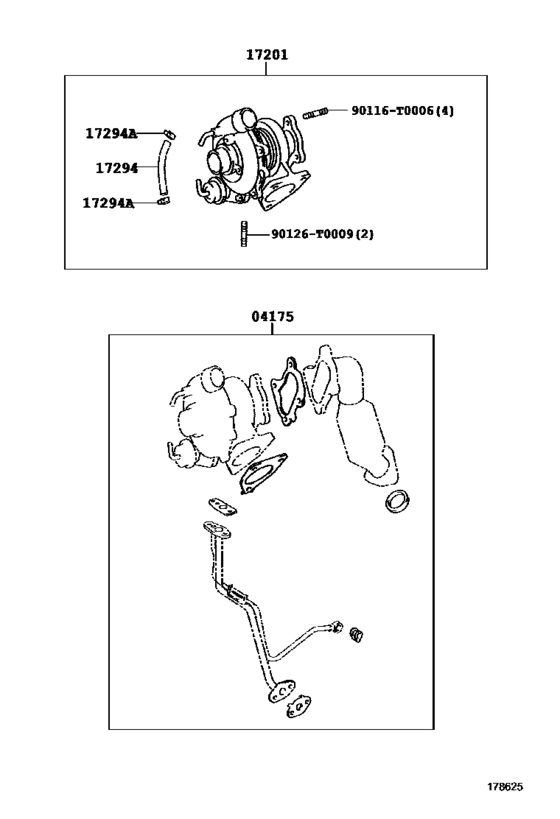

Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) 6
| # | OEM | Part name |
|---|---|---|
| 4175 | 04175-0L012 | Gasket Kit, Turbocharger |
| 17201 | 17201-0L030 | Turbocharger Sub-Assy |
| 17294 | 90445-T0010 | Hose, Actuator |
| 17294 | 90466-T0008 | Clip(For Actuator Hose) |
| 90116 | 90116-T0006 | New Genuine Part |
| 90126 | 90126-T0009 | STUD HEXALOBULAR |
| OEM | Part name | Category |
|---|---|---|
| 04175-0L012 | Gasket Kit, Turbocharger | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
| 17201-0L030 | Turbocharger Sub-Assy | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
| 90116-T0006 | New Genuine Part | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
| 90126-T0009 | STUD HEXALOBULAR | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
| 90445-T0010 | Hose, Actuator | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
| 90466-T0008 | Clip(For Actuator Hose) | Manifold ([05.2015 - ] TURBOCHARGER (1505- )2KDFTV..DCR) |
