Search › Model › KT147

KT147

Toyota CORONA · 1983 · 3,600 parts · 178 categories
KT147 ×

← Back to categories

3,600 items

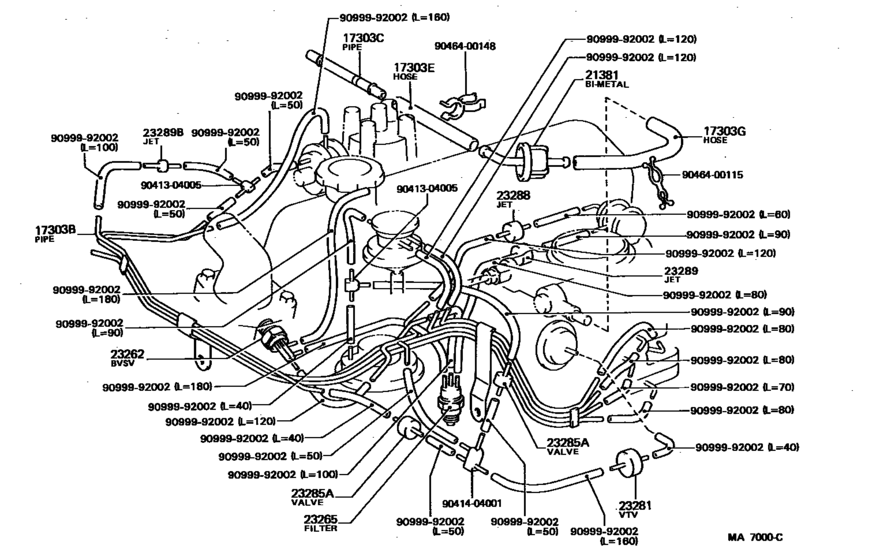

Vacuum Piping ([10.1983 - 08.1985] (8310-8508)5KJ) 18
#OEMPart name
17303 17303-13110 Pipe Sub-Assy, Air, No.1
17303 23818-13030 Pipe Sub-Assy, Air, No.2
17303 90445-14084 Hose, No.1(For Air Pipe)
17303 90910-05161 Hose, No.3(For Air Pipe)
21381 21381-13030 Bimetal, Thermostatic
23262 25810-13010 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11024 Filter, Gas, No.1
23265 90917-11027 Filter, Gas, No.1
23281 90925-01014 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
23288 90925-04005 Jet(For Carburetor)
23289 90925-04006 Jet(For Opener)
23289 90925-04031 Jet, No.3
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041404001 90414-04001 Joint, No.1 (For Idle Up Divice)
9046400115 90464-00115 New Genuine Part
9046400148 90464-00148 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
