Search › Model › KT147

KT147

Toyota CORONA · 1983 · 3,600 parts · 178 categories

3,600 items

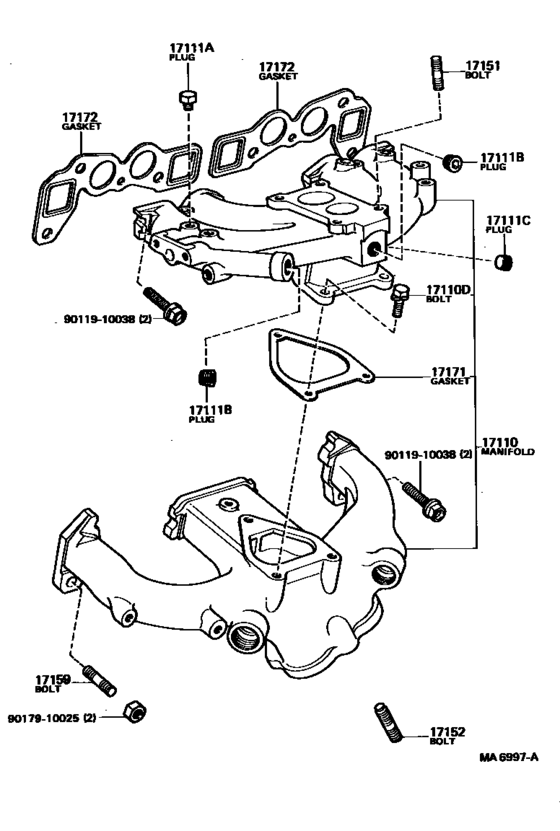

Manifold ([10.1983 - 12.1987] (8310-8712)5KJ) 20

#	OEM	Part name
17110	17110-13130	Manifold Assy
17110	17110-13131	Manifold Assy
17110	17172-13050	Gasket, Manifold To Cylinder Head
17110	90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17110	90179-10051	NUT
17110	90179-10175	NUT
17110	90344-53008	Plug, W/head Taper Screw, No.2
17110	91611-60822	Bolt
17111	90345-51025	Plug, W/head Taper Screw, No.2
17111	90344-52003	Plug, W/head Taper Screw, No.1
17111	90344-52013	Plug, W/head Taper Screw, No.1
17151	90116-08010	Bolt, Stud(For Manifold To Carburetor)
17152	90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	92122-41028	Bolt, Stud(For Manifold To Cylinder Head)
17171	17171-13040	Gasket, Intake To Exhaust Manifold
17171	17171-13050	Gasket, Intake To Exhaust Manifold
17172	17172-13021	Gasket, Manifold To Cylinder Head
17172	17172-13030	Gasket, Manifold To Cylinder Head
9011910038	90119-10038	New Genuine Part
9017910025	90179-10025	NUT

OEM	Part name	Category
17110-13130	Manifold Assy	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17110-13131	Manifold Assy	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17171-13040	Gasket, Intake To Exhaust Manifold	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17171-13050	Gasket, Intake To Exhaust Manifold	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17172-13021	Gasket, Manifold To Cylinder Head	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17172-13030	Gasket, Manifold To Cylinder Head	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
17172-13050	Gasket, Manifold To Cylinder Head	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90116-08010	Bolt, Stud(For Manifold To Carburetor)	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90119-10038	New Genuine Part	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90179-10025	NUT	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90179-10051	NUT	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90179-10175	NUT	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90344-52003	Plug, W/head Taper Screw, No.1	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90344-52013	Plug, W/head Taper Screw, No.1	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90344-53008	Plug, W/head Taper Screw, No.2	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
90345-51025	Plug, W/head Taper Screw, No.2	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
91611-60822	Bolt	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
92122-41028	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([10.1983 - 12.1987] (8310-8712)5KJ)
