Search › Model › KT147

KT147

Toyota CORONA · 1983 · 3,600 parts · 178 categories
KT147 ×

← Back to categories

3,600 items

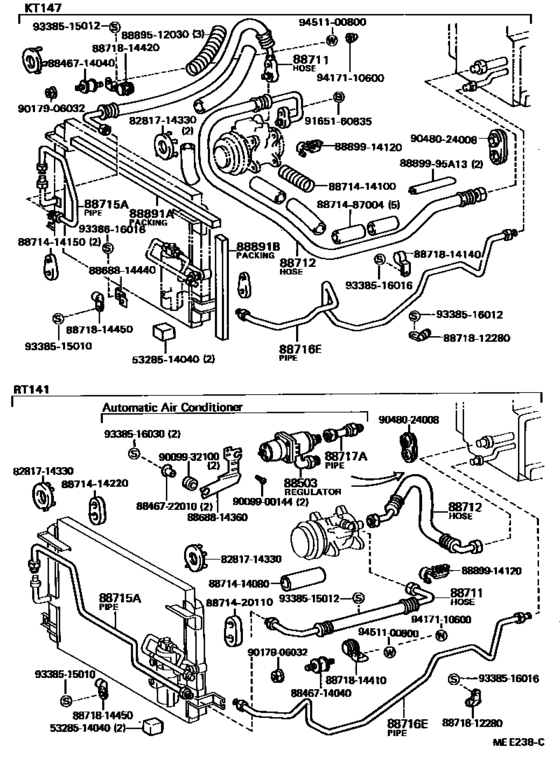

Heating & Air Conditioning - Cooler Piping ([10.1983 - 12.1987] (8201-8210)RT141 ; (8310-8712)KT147) 43
#OEMPart name
88711 88711-14600 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-1B030 Hose, Cooler Refrigerant Suction, No.1
88715 88715-14130 Pipe, Cooler Refrigerant Discharge, A
88716 88716-14760 Pipe, Cooler Refrigerant Liquid, C
88891 53293-14040 Deflector, Radiator Upper Air
88891 53291-14020 Seal, Radiator Support To Frame
8889995 88899-95A13 Cover, Evaporator
5328514040 53285-14040 Cover, Front Bumper Arm Hole
8281714330 82817-14330 Protector, Wiring Harness, No.1
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8868814360 88688-14360 Bracket, Cooler Diaphragm
8868814440 88688-14440 Bracket, Cooler Diaphragm
8871414080 88714-14080 Insulator, Cooler Refrigerant Hose, No.2
8871414080 88714-24020 Insulator, Cooler Refrigerant Hose, No.1
8871414100 88714-14100 Insulator, Cooler Refrigerant Hose, No.2
8871414150 88714-14150 Hose, Cooler Refrigerant Liquid, No.1
8871414220 88714-14220 Hose, Cooler Refrigerant Liquid, No.1
8871420110 88714-20110 Hose, Cooler Refrigerant Liquid, No.1
8871487004 88714-87004 Insulator, Cooler Refrigerant Hose, No.1
8871487004 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871814140 88718-14140 Pipe, Cooler Refrigerant Suction, No.2
8871814410 88718-14410 Pipe, Cooler Refrigerant Suction, No.2
8871814420 88718-14420 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8889512030 88895-12030 Insulator, Cooler Refrigerant Pipe, No.2
8889914120 88899-14120 Cover, Evaporator
9009900144 90099-00144 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338515012 93385-15012 SCREW
9338516012 93385-16012 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
9338616016 93386-16016 New Genuine Part
9417110600 94171-10600 New Genuine Part
9451100800 94511-00800 WASHERSPRING
