Search › Model › KSP92

KSP92

Toyota BELTA · 2005 · 2,964 parts · 171 categories

2,964 items

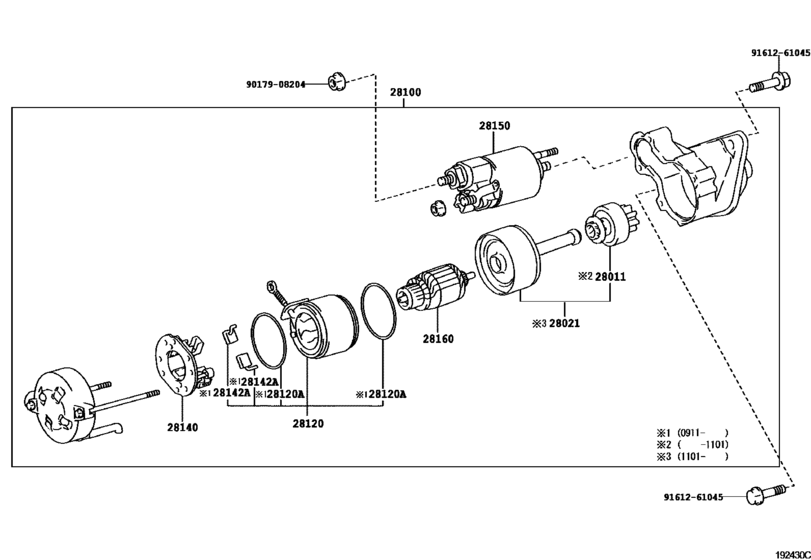

Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE) 24

#	OEM	Part name
28011	28011-23030	Clutch Sub-Assy, Starter
28011	28011-40070	Clutch Sub-Assy, Starter
28021	28021-23030	Clutch Sub-Assy, Starter Center Bearing
28100	28100-40070	Starter Assy
28100	28100-40072	Starter Assy
28100	28100-40071	Starter Assy
28100	28100-40090	Starter Assy
28100	28100-40091	Starter Assy
28120	28120-23020	Yoke Assy, Starter
28120	28120-40120	Yoke Assy, Starter
28120	28120-40130	Yoke Assy, Starter
28120	28120-70050	Yoke Assy, Starter
28120	90099-14092	Ring, O(For Starter Yoke)
28140	28140-70020	Holder Assy, Starter Brush
28142	28142-10020	Brush, Starter
28142	28142-70020	Brush, Starter
28150	28150-16160	Switch Assy, Magnet Starter
28150	28150-21020	Switch Assy, Magnet Starter
28150	28150-40070	Switch Assy, Magnet Starter
28160	28160-40070	Armature Assy, Starter
28160	28160-70050	Armature Assy, Starter
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
28011-23030	Clutch Sub-Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28011-40070	Clutch Sub-Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28021-23030	Clutch Sub-Assy, Starter Center Bearing	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28100-40070	Starter Assy	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28100-40071	Starter Assy	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28100-40072	Starter Assy	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28100-40090	Starter Assy	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28100-40091	Starter Assy	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28120-23020	Yoke Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28120-40120	Yoke Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28120-40130	Yoke Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28120-70050	Yoke Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28140-70020	Holder Assy, Starter Brush	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28142-10020	Brush, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28142-70020	Brush, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28150-16160	Switch Assy, Magnet Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28150-21020	Switch Assy, Magnet Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28150-40070	Switch Assy, Magnet Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28160-40070	Armature Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
28160-70050	Armature Assy, Starter	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
90080-18070	NUT, WWASHER	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
90099-14092	Ring, O(For Starter Yoke)	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
90179-08204	Nut	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
91612-61045	Bolt(For Transaxle & Engine Setting)	Starter ([11.2005 - ] 12V 1.0KW (0511- )1KRFE)
