Search › Model › KSP92

KSP92

Toyota BELTA · 2005 · 2,964 parts · 171 categories

2,964 items

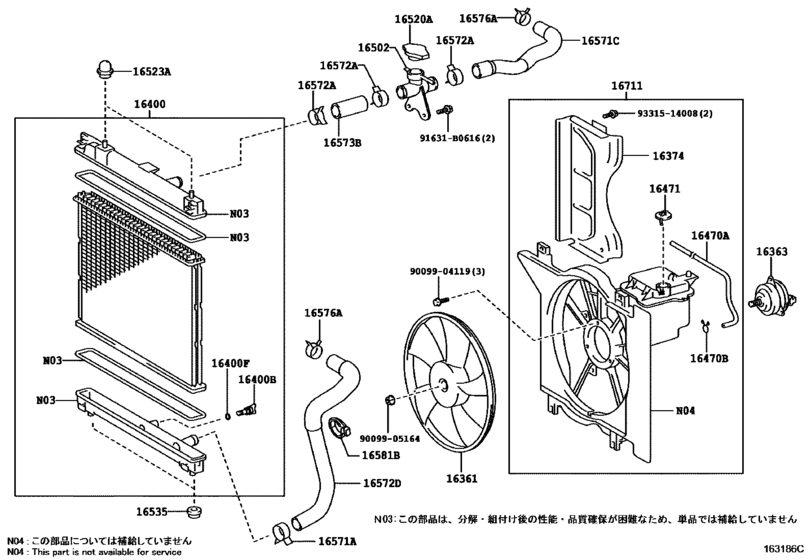

Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE) 65

#	OEM	Part name
16258	16258-40010	Gasket(For Water By-Pass Pipe)
16258	16258-40021	Gasket(For Water By-Pass Pipe)
16258	16258-40020	Gasket(For Water By-Pass Pipe)
16260	16260-40060	Hose Assy, Water By-Pass
16260	16260-40061	Hose Assy, Water By-Pass
16261	16261-40060	Hose, Water By-Pass
16261	16261-40111	Hose, Water By-Pass
16261	16261-40120	Hose, Water By-Pass
16261	87209-52200	Hose, Water By-Pass, No.1
16261	87209-52201	Hose, Water By-Pass, No.1
16261	16260-40050	Hose, Water By-Pass, No.2
16261	16260-40051	Hose, Water By-Pass, No.2
16264	99556-10260	Hose, Water By-Pass, No.2
16268	16268-40010	Pipe, Water By-Pass, No.1
16321	16321-40010	Inlet, Water
16331	90916-03134	Thermostat
16331	90916-03150	Thermostat
16341	16341-35010	Gasket, Water Outlet
16361	16361-23070	Fan
16363	16363-28150	Motor, Cooling Fan
16374	16366-40010	Insulator, Cooling Fan Motor
16381	16381-40041	Bar, Fan Belt Adjusting
16385	16385-40011	Slider, Fan Belt Adjusting
16400	16400-23160	Radiator Assy
16400	16400-23161	RADIATOR ASSY
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16471-23030	Cap Sub-Assy, Reserve Tank
16502	16502-23010	Filler Sub-Assy, Water
16520	16401-31480	Cap Sub-Assy, Radiator
16520	16401-31520	Radiator Cap Sub-Assy (108kPa)
16520	16401-36020	Cap Sub-Assy, Radiator
16520	16401-62100	Cap Sub-Assy, Radiator
16523	16523-21030	Cushion, Radiator Support
16535	90480-22025	Cushion, Intercooler Support
16571	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16571	16571-40040	Hose, Radiator, No.1
16572	90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-40010	Hose, Radiator, No.2
16573	16573-23010	Hose, Radiator, No.3
16576	90466-30001	Clip Or Clamp(For Ventilation Hose)
16581	90469-41001	Clamp, Hose(For Radiator Hose)
16581	16581-40030	Clamp, Hose(For Water Hose)
16711	16711-23090	Shroud, Fan
91631	91631-B0616	BOLT WWASHER
91671	91671-F0630	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9010508433	90105-08433	BOLT FLANGE
9010510075	90105-10075	Bolt(For Alternator)
9012608055	90126-08055	Bolt, Stud(For Manifold To Cylinder Head)
9046621001	90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9167180630	91671-80630	Bolt(For Cylinder Head Cover)
9167180818	91671-80818	BOLT FLANGE
9167180825	91671-80825	Bolt, Compressor, No.1
9213280625	92132-80625	Bolt, Stud(For Cylinder Head Cover Set)
9331514008	93315-14008	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9613441900	96134-41900	Clip Or Clamp(For Ventilation Hose)
9613442100	96134-42100	Clip(For Water By-Pass Hose Assy)
9613551300	96135-51300	Clamp, Hose
9613741501	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
16258-40010	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16258-40020	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16258-40021	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16260-40050	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16260-40051	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16260-40060	Hose Assy, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16260-40061	Hose Assy, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16261-40060	Hose, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16261-40111	Hose, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16261-40120	Hose, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16268-40010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16321-40010	Inlet, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16361-23070	Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16363-28150	Motor, Cooling Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16366-40010	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16381-40041	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16385-40011	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16400-23160	Radiator Assy	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16400-23161	RADIATOR ASSY	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16471-23030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16502-23010	Filler Sub-Assy, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16523-21030	Cushion, Radiator Support	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16571-40040	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16572-40010	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16573-23010	Hose, Radiator, No.3	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16581-40030	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
16711-23090	Shroud, Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
87209-52200	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
87209-52201	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90099-05164	Nut	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90105-08433	BOLT FLANGE	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90105-10075	Bolt(For Alternator)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90126-08055	Bolt, Stud(For Manifold To Cylinder Head)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90466-30001	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90469-41001	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90480-22025	Cushion, Intercooler Support	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90916-03134	Thermostat	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
90916-03150	Thermostat	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
91631-B0616	BOLT WWASHER	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
91671-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
91671-80818	BOLT FLANGE	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
91671-80825	Bolt, Compressor, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
91671-F0630	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
92132-80625	Bolt, Stud(For Cylinder Head Cover Set)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
93315-14008	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
94151-80800	Nut (For Transmission Control Cable)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
96134-42100	Clip(For Water By-Pass Hose Assy)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)
99556-10260	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1KRFE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 171
Collected: 2026-08-02
