KSP90

Toyota VITZ · 2005 · 3,932 parts · 212 categories

← Back to categories

3,932 items

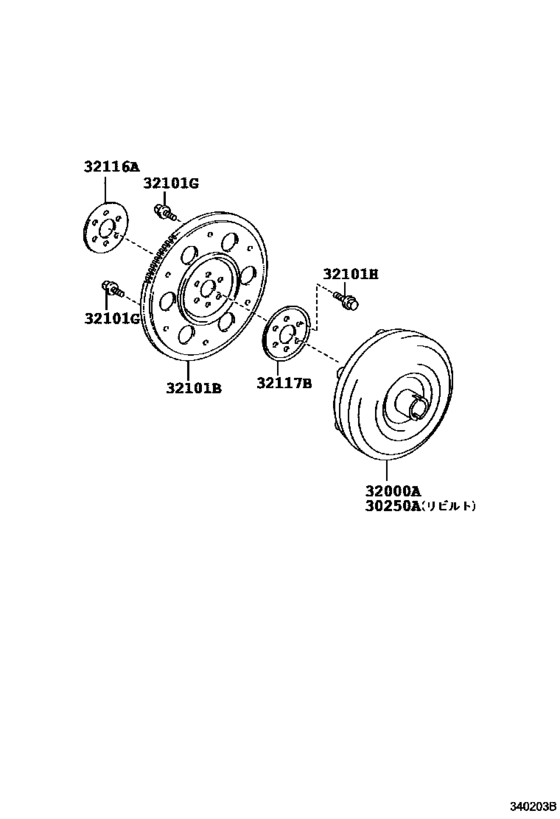

Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC) 15

#	OEM	Part name
30250	30250-52090	Converter Assy, Torque, Rebuilt
30250	30250-52091	Converter Assy, Torque, Rebuilt
32000	32000-52090	Converter Assy, Torque
32000	32000-52091	Converter Assy, Torque
32101	32111-52030	Gear Sub-Assy, Drive Plate & Ring
32101	32101-52080	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08107	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08269	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32101	90105-A0022	Bolt, Hexagon(For Drive Plate Setting)
32101	32101-52060	Gear Sub-Assy, Drive Plate & Ring
32116	32116-52010	Spacer, Drive Plate, Front
32117	32117-52010	Spacer, Drive Plate, Rear

OEM	Part name	Category
30250-52090	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
30250-52091	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32000-52090	Converter Assy, Torque	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32000-52091	Converter Assy, Torque	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32101-52060	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32101-52080	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32111-52030	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32116-52010	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
32117-52010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90105-A0022	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90109-08107	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90119-08269	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2005 - ] K210,K410 (0501- )CVFC)
