KSP90

Toyota VITZ · 2005 · 3,932 parts · 212 categories

← Back to categories

3,932 items

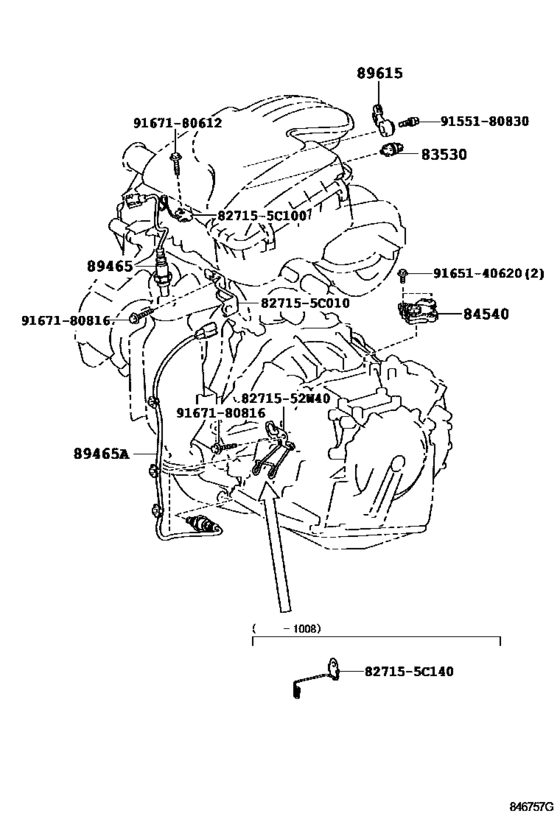

Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90) 18

#	OEM	Part name
83530	83530-28020	Switch Assy, Oil Pressure (For Engine)
83530	83530-60020	Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ
83530	83530-0E010	Switch Assy, Oil Pressure (For Engine)
84540	84540-52070	Switch Assy, Neutral Start
89465	89465-52330	Sensor, Oxygen
89465	89467-52140	Sensor, Oxygen
89465	89467-52180	Sensor, Oxygen
89465	89465-52350	Sensor, Oxygen No.2
89465	89465-52650	Sensor, Oxygen No.2
89615	89615-20090	Sensor, Knock Control
827155	82715-5C010	Bracket,wiring Harness Clamp
827155	82715-5C100	Bracket,wiring Harness Clamp
827155	82715-5C140	Bracket,wiring Harness Clamp
8271552	82715-52W40	Bracket,wiring Harness Clamp
9155180830	91551-80830	Bolt, Compressor, No.2
9165140620	91651-40620	BOLT
9167180612	91671-80612	Bolt
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
82715-52W40	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
82715-5C010	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
82715-5C100	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
82715-5C140	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
83530-0E010	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
83530-28020	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
83530-60020	Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
84540-52070	Switch Assy, Neutral Start	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89465-52330	Sensor, Oxygen	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89465-52350	Sensor, Oxygen No.2	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89465-52650	Sensor, Oxygen No.2	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89467-52140	Sensor, Oxygen	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89467-52180	Sensor, Oxygen	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
89615-20090	Sensor, Knock Control	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
91551-80830	Bolt, Compressor, No.2	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
91651-40620	BOLT	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
91671-80612	Bolt	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )KSP90)
