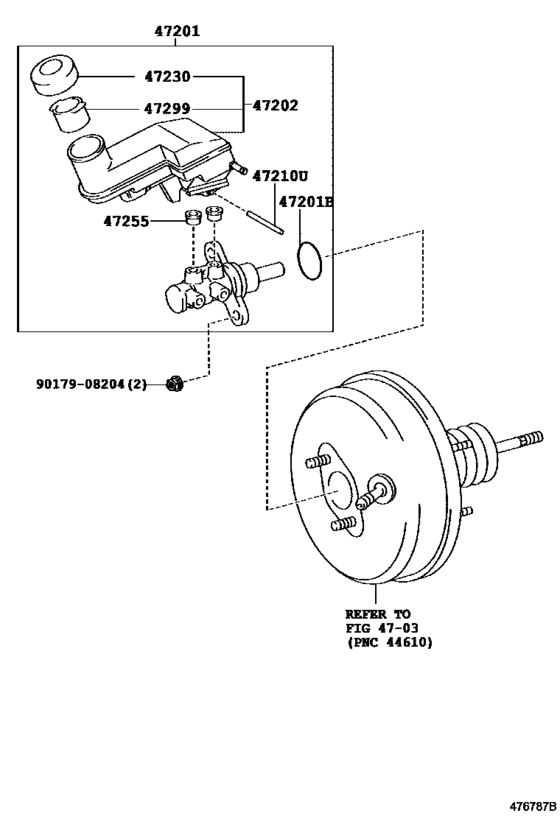

| 47201-52250 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47201-52251 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47220-52110 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47230-33071 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47230-33072 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47230-52030 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 47299-52110 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 90015-AE401 |
Ring Pin, Brake Master Cylinder |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 90015-AH001 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 90015-AT001 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([01.2005 - ] (0501- )) |
