KR52

Toyota LITE-TOWNACE-NOAH · 2004 · 3,341 parts · 203 categories

← Back to categories

3,341 items

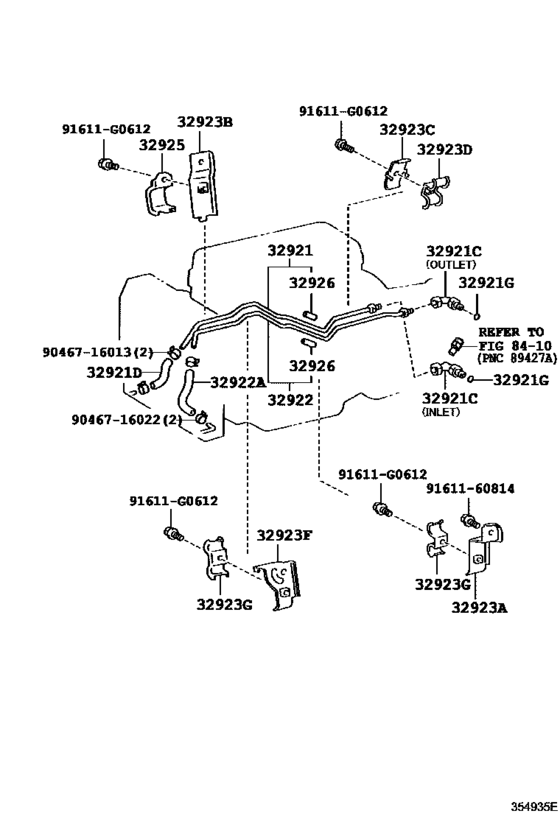

Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM) 19

#	OEM	Part name
32921	32921-28310	Tube, Oil Cooler Inlet, No.1
32921	90407-16010	Union(For Oil Cooler Tube)
32921	90407-16028	Union(For Oil Cooler Tube)
32921	32941-28250	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	32922-28230	Tube, Oil Cooler Outlet, No.1
32922	90445-17137	Hose(For Oil Cooler Outlet)
32923	32923-28140	Clamp, Automatic Transmission Oil Cooler Tube
32923	32925-28040	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32923	32923-28150	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923	32923-28160	Clamp, Automatic Transmission Oil Cooler Tube, No.5
32923	32924-28090	Clamp, Automatic Transmission Oil Cooler Tube, No.7
32923	90462-12044	Clamp, Automatic Transmission Oil Cooler Tube
32925	32929-28010	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
91611	91611-G0612	Bolt
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9161160814	91611-60814	Bolt

OEM	Part name	Category
32921-28310	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32922-28230	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32923-28140	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32923-28150	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32923-28160	Clamp, Automatic Transmission Oil Cooler Tube, No.5	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32924-28090	Clamp, Automatic Transmission Oil Cooler Tube, No.7	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32925-28040	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32929-28010	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
32941-28250	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90407-16028	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90445-17137	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90462-12044	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([12.2004 - ] A44DF (0412- )KR52..ATM)
