Search › Model › KR42

KR42

Toyota LITE-TOWNACE-NOAH · 1996 · 3,119 parts · 195 categories

3,119 items

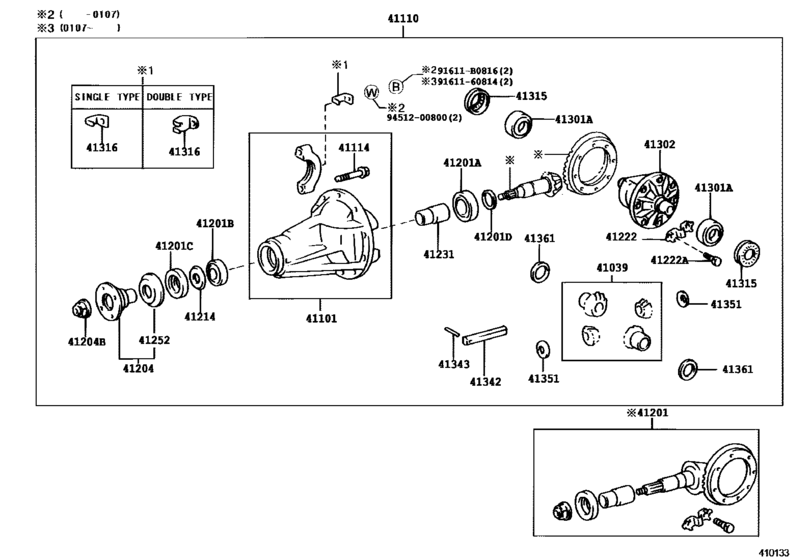

Rear Axle Housing & Differential ([10.1996 - ] (9610- )) 67

#	OEM	Part name
4412	04412-28070	Gasket Kit, Rear Differential Carrier
4412	04412-28080	Gasket Kit, Rear Differential Carrier
41039	41039-28010	Gear Kit, Differential, Rear
41101	41101-30010	Carrier Sub-Assy, Differential, Rear
41110	41110-21020	Carrier Assy, Differential, Rear
41110	90116-08235	Bolt, No.1 (For Rear Differential Carrier Set)
41110	90116-08418	Bolt, No.1 (For Rear Differential Carrier Set)
41110	41110-22240	Carrier Assy, Differential, Rear
41114	90105-12240	Bolt, Rear Differential Bearing Cap
41201	41201-29217	Final Gear Kit, Differential, Rear
41201	90366-35023	Bearing (For Rear Drive Pinion Rear)
41201	90366-30055	Bearing (For Rear Drive Pinion Front)
41201	90311-38047	Seal, Oil (For Differential Carrier)
41201	90201-35396	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35397	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35398	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35399	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35400	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35401	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35402	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35403	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35404	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35438	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35439	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35440	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35441	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35515	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35516	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35517	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35518	Washer, Plate (For Rear Differential Drive Pinion)
41201	41201-29765	Final Gear Kit, Differential, Rear
41204	41204-20030	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90179-18020	Nut (For Transfer Gear)
41214	41214-30021	Slinger, Rear Differential Drive Pinion Oil
41222	41222-28010	Plate, Rear Differential Ring Gear Set Bolt Lock
41222	90101-11353	Bolt (For Rear Differential Ring Gear Set)
41231	41231-22020	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-30010	Deflector, Dust (For Rear Differential)
41301	90368-45014	Bearing(For Rear Differential Case)
41302	41311-30022	Case Sub-Assy, Rear Differential
41315	41315-30010	Nut, Rear Differential Bearing Adjusting
41316	41316-35010	Lock, Rear Differential Bearing Adjusting Nut
41316	41317-30010	Lock, Rear Differential Bearing Adjusting Nut
41342	41342-30011	Shaft, Rear Differential Pinion
41343	90250-06058	Pin, Straight(For Timing Gear Case)
41351	41351-30032	Washer, Rear Differential Pinion Thrust
41361	41361-22020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22140	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22150	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22160	Washer, Rear Differential Side Gear Thrust, No.1
42110	42110-28380	Housing Assy, Rear Axle
42110	42110-28400	Housing Assy, Rear Axle
42110	90341-18049	Plug(For Oil Heater Houl)
42110	12157-10010	Gasket (For Drain Plug)
42110	90930-03031	Plug, Breather(For Parking Cover)
42110	90341-18057	Drain Plug (with Magnet)
42110	42110-28390	Housing Assy, Rear Axle
42110	42110-28410	Housing Assy, Rear Axle
42139	42108-22030	Deflector, Rear Axle Housing Oil
42181	42181-30010	Gasket, Rear Differential Carrier
91611	91611-B0816	Bolt
9017008042	90170-08042	Nut, Hexagon(For Rear Differential Carrier Set)
9017008204	90170-08204	Nut (For Propeller Shaft)
9161160814	91611-60814	Bolt
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04412-28070	Gasket Kit, Rear Differential Carrier	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
04412-28080	Gasket Kit, Rear Differential Carrier	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41039-28010	Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41101-30010	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41110-21020	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41110-22240	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41201-29217	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41201-29765	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41204-20030	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41214-30021	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41222-28010	Plate, Rear Differential Ring Gear Set Bolt Lock	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41231-22020	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41252-30010	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41311-30022	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41315-30010	Nut, Rear Differential Bearing Adjusting	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41316-35010	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41317-30010	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41342-30011	Shaft, Rear Differential Pinion	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41351-30032	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22020	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22030	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22040	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22140	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22150	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
41361-22160	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42108-22030	Deflector, Rear Axle Housing Oil	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42110-28380	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42110-28390	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42110-28400	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42110-28410	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
42181-30010	Gasket, Rear Differential Carrier	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90101-11353	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90105-12240	Bolt, Rear Differential Bearing Cap	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90116-08235	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90116-08418	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90170-08042	Nut, Hexagon(For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90170-08204	Nut (For Propeller Shaft)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90179-18020	Nut (For Transfer Gear)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35396	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35397	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35398	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35399	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35400	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35401	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35402	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35403	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35404	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35438	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35439	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35440	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35441	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35515	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35516	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35517	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90201-35518	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90250-06058	Pin, Straight(For Timing Gear Case)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90311-38047	Seal, Oil (For Differential Carrier)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90341-18049	Plug(For Oil Heater Houl)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90341-18057	Drain Plug (with Magnet)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90366-30055	Bearing (For Rear Drive Pinion Front)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90366-35023	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90368-45014	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
90930-03031	Plug, Breather(For Parking Cover)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
91611-60814	Bolt	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
91611-B0816	Bolt	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Housing & Differential ([10.1996 - ] (9610- ))
