| 23091-74280 |
Tube Sub-Assy, Fuel Pump |

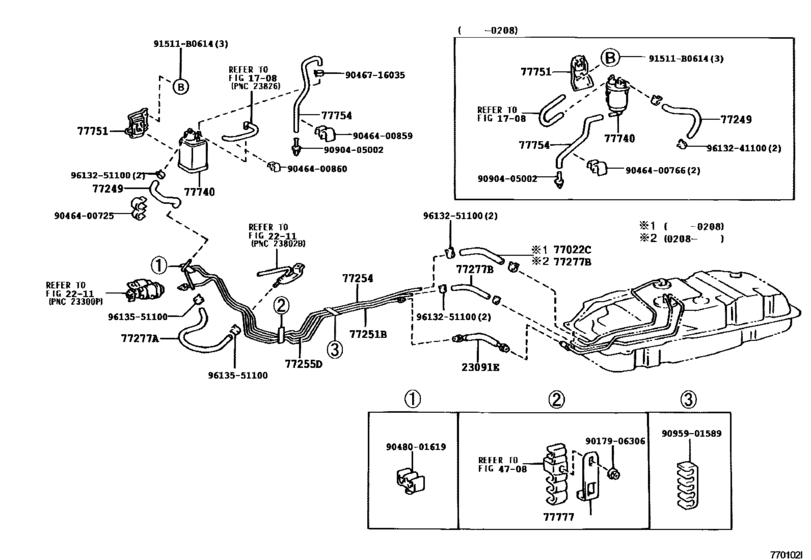

Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 23273-13040 |
Hose, Fuel, No.1(For Return Tube, No.1) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 23273-13041 |
Hose, Fuel, No.1(For Return Tube, No.1) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77251-28160 |
Tube, Fuel Main |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77255-28120 |
Tube, Fuel Return |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77263-28100 |
Tube, Fuel Emission, No.1 |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77279-28071 |
Hose, Fuel Emission |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77704-12490 |
Canister Sub-Assy, Charcoal |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77751-28180 |
Bracket, Charcoal Canister Base |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77754-28040 |
Hose, Charcoal Canister Outlet, No.1 |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 77777-28010 |
Bracket, Fuel Tube Clamp |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90179-06306 |
NUT |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90464-00725 |
Clip(For Fuel Vapor Feed Hose) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90464-00766 |
New Genuine Part |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90464-00859 |
New Genuine Part |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90464-00860 |
New Genuine Part |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90467-16035 |
Clip Or Clamp(For Ventilation Hose) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90480-01619 |
Clamp, Brake Tube, No.5 |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90904-05002 |
New Genuine Part |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 90959-01589 |
New Genuine Part |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 91511-B0614 |
BOLT, FLANGE |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 95337-06014 |
Hose, Fuel, No.1 (For Fuel Tank To Canister Tube) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 96132-41100 |
Clamp Or Clip(For Radiator Reserve Tank Hose) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 96132-51100 |
Clip (For Hose) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
| 96135-51100 |
Clamp Or Clip(For Turbo Oil Outlet Hose) |
Fuel Tank & Tube ([12.1998 - ] (9610- )SR40,50 ; (9812- )KR42,52) |
