Search › Model › KR42

KR42

Toyota LITE-TOWNACE-NOAH · 1996 · 3,119 parts · 195 categories

3,119 items

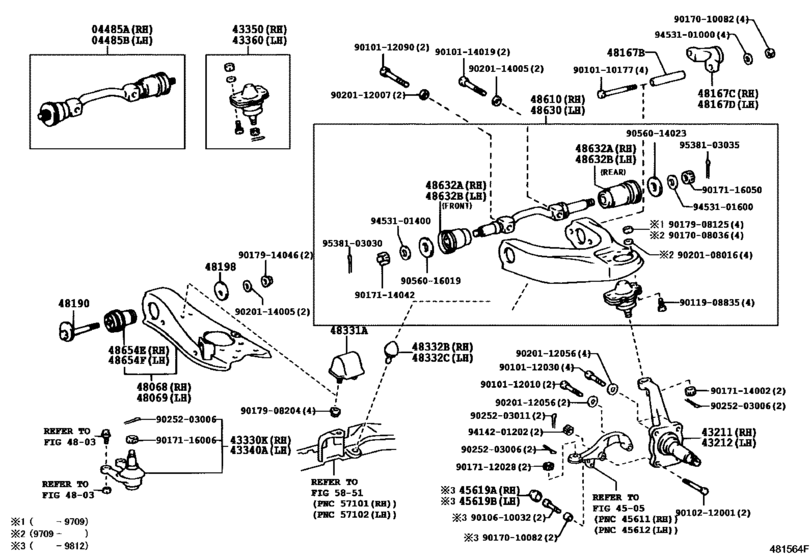

Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40) 53

#	OEM	Part name
4485	04485-28050	Shaft Kit, Front Suspension Upper Arm
43211	43211-28021	Knuckle, Steering, Rh
43211	43211-28070	Knuckle, Steering, Rh
43212	43212-28050	Knuckle, Steering, Lh
43330	43330-29175	Joint Assy, Lower Ball, Front
43330	43330-29545	Joint Assy, Lower Ball, Front
43350	43350-29076	Joint Assy, Upper Ball
48068	48068-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	90440-17029	Tube(For Torque Arm Setting Bolt)
48167	48106-27040	Arm, Torque
48190	48190-27020	Cam Assy, Camber Adjust
48198	48198-27010	Cam, Camber Adjust, No.2
48331	48331-27051	Bumper, Front Spring, No.1
48332	48332-35020	Bumper, Front Spring, No.2
48610	48610-28030	Arm Sub-Assy, Front Suspension, Upper Rh
48630	48630-28030	Arm Sub-Assy, Front Suspension, Upper Lh
48632	48632-28050	Bush, Upper Arm
48632	48635-28060	Bush, Upper Arm
48654	48061-27011	Bush, Lower Arm
9010110177	90101-10177	Shaft, Clutch Pedal
9010112010	90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)
9010112030	90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)
9010112090	90101-12090	New Genuine Part
9010114019	90101-14019	New Genuine Part
9010212001	90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9010610032	90106-10032	Bolt, Round Hexagon (For Steering Knuckle Stopper)
9011908835	90119-08835	BOLT WWASHER
9017008036	90170-08036	NUT HEXAGON
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017112028	90171-12028	Nut, Castle(For Pitman Arm)
9017114002	90171-14002	Nut (For Rear Steering Knuckle Arm)
9017114042	90171-14042	Nut, Castle(For Pitman Arm)
9017116006	90171-16006	Nut, Castle(For Tie Rod End)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908125	90179-08125	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9017914046	90179-14046	Nut
9020108016	90201-08016	New Genuine Part
9020112007	90201-12007	Washer, Spring(For Rear Differential Case)
9020112056	90201-12056	New Genuine Part
9020114005	90201-14005	Washer, Plate
9025203006	90252-03006	New Genuine Part
9025203011	90252-03011	PIN
9056014023	90560-14023	Retainer, Cushion(For Front Suspension Upper Arm)
9056016019	90560-16019	Retainer, Cushion(For Front Suspension Upper Arm)
9414201202	94142-01202	Nut(For Dust Cover To Steering Knuckle Arm Setting)
9453101000	94531-01000	WASHER
9453101400	94531-01400	New Genuine Part
9453101600	94531-01600	WASHER
9538103030	95381-03030	New Genuine Part
9538103035	95381-03035	New Genuine Part

OEM	Part name	Category
04485-28050	Shaft Kit, Front Suspension Upper Arm	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43211-28021	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43211-28070	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43212-28050	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43330-29175	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43330-29545	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
43350-29076	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48061-27011	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48068-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48069-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48106-27040	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48190-27020	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48198-27010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48331-27051	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48332-35020	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48610-28030	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48630-28030	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48632-28050	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
48635-28060	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90080-18070	NUT, WWASHER	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90101-10177	Shaft, Clutch Pedal	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90101-12090	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90101-14019	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90106-10032	Bolt, Round Hexagon (For Steering Knuckle Stopper)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90119-08835	BOLT WWASHER	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90170-08036	NUT HEXAGON	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90171-12028	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90171-14002	Nut (For Rear Steering Knuckle Arm)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90171-14042	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90171-16006	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90179-08125	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90179-08204	Nut	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90179-14046	Nut	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90201-08016	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90201-12007	Washer, Spring(For Rear Differential Case)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90201-12056	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90201-14005	Washer, Plate	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90252-03006	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90252-03011	PIN	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90440-17029	Tube(For Torque Arm Setting Bolt)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90560-14023	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
90560-16019	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
94142-01202	Nut(For Dust Cover To Steering Knuckle Arm Setting)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
94531-01000	WASHER	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
94531-01400	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
94531-01600	WASHER	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
95381-03030	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
95381-03035	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )CR4#,KR4#,SR40)
