Search › Model › KR41
KR41

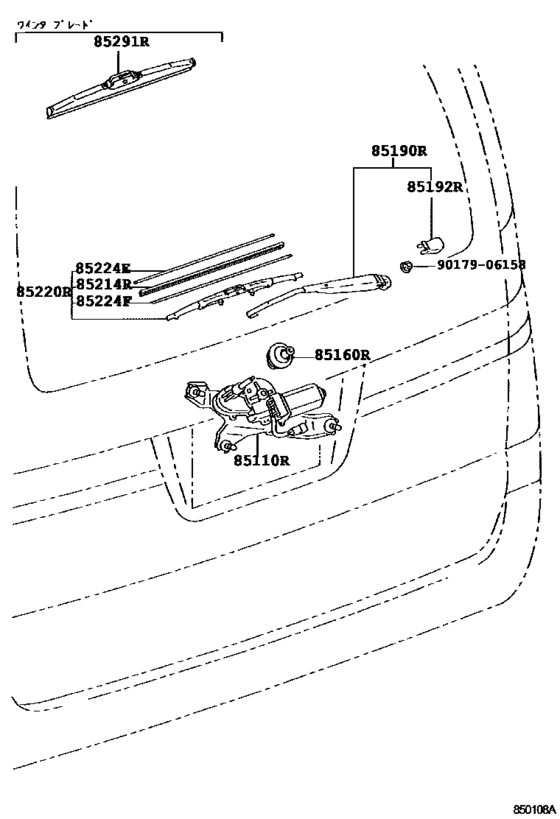

Rear Wiper ([10.1996 - ] (9610- )) 10
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-28060 | Motor Assy, Rear Wiper |
| 85160 | 85134-28060 | Link Assy, Rear Wiper |
| 85190 | 85241-28060 | Arm Assy, Rear Wiper |
| 85192 | 85192-13060 | Cover, Rear Wiper Arm |
| 85214 | 85214-10100 | Rubber, Rear Wiper |
| 85220 | 85242-60050 | Blade Assy, Rear Wiper |
| 85224 | 85224-10200 | Plate, Rear Wiper Rubber Backing, No.1 |
| 85291 | 85291-60060 | Blade Assy, Windshield Wiper |
| 85291 | 85291-44080 | Blade Assy, Windshield Wiper |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 85130-28060 | Motor Assy, Rear Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85134-28060 | Link Assy, Rear Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85192-13060 | Cover, Rear Wiper Arm | Rear Wiper ([10.1996 - ] (9610- )) |
| 85214-10100 | Rubber, Rear Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85224-10200 | Plate, Rear Wiper Rubber Backing, No.1 | Rear Wiper ([10.1996 - ] (9610- )) |
| 85241-28060 | Arm Assy, Rear Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85242-60050 | Blade Assy, Rear Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85291-44080 | Blade Assy, Windshield Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 85291-60060 | Blade Assy, Windshield Wiper | Rear Wiper ([10.1996 - ] (9610- )) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([10.1996 - ] (9610- )) |
