Search › Model › KR41

KR41

Toyota LITE-TOWNACE-NOAH · 1996 · 3,721 parts · 214 categories

3,721 items

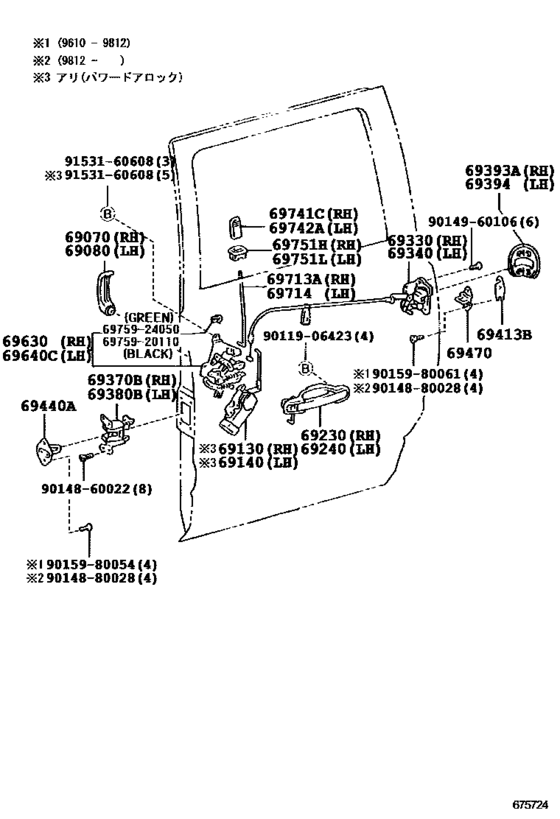

Rear Door Lock & Handle ([11.1996 - ] (9611- )5D) 38

#	OEM	Part name
69070	69070-28050-B1	Handle Assy, Slide Door, Inside, Rh
69130	69130-28020	Actuator Assy, Rear Door Lock, Rh
69140	69140-28040	Actuator Assy, Rear Door Lock, Lh
69230	69230-28040	Handle Assy, Rear Door Outside, Rh
69230	69230-28051	Handle Assy, Rear Door Outside, Rh
69240	69240-28040	Handle Assy, Rear Door Outside, Lh
69240	69240-28061	Handle Assy, Rear Door Outside, Lh
69330	69330-28010	Lock Assy, Rear Door, Rh
69330	69330-28040	Lock Assy, Rear Door, Rh
69330	69330-28030	Lock Assy, Rear Door, Rh
69340	69340-28020	Lock Assy, Rear Door, Lh
69340	69340-28110	Lock Assy, Rear Door, Lh
69340	69340-28070	Lock Assy, Rear Door, Lh
69370	69370-28040	Lock Assy, Slide Door, Front Rh
69380	69380-28040	Lock Assy, Slide Door, Front Lh
69393	69394-28010	Cover, Rear Door Lock, Outer Rh
69413	69413-28020	Shim, Door Lock Striker
69440	69440-28010	Plate Assy, Slide Door Front Lock Striker
69440	69440-28020	Plate Assy, Slide Door Front Lock Striker
69470	69470-28060	Plate Assy, Slide Door Lock Striker
69470	69470-28070	Plate Assy, Front Door Lock Striker
69630	69630-28080	Control Assy, Slide Door Lock Remote
69630	69630-28100	Control Assy, Slide Door Lock Remote
69640	69640-28110	Control Assy, Slide Door Lock Remote, Lh
69640	69640-28130	Control Assy, Slide Door Lock Remote, Lh
69713	69713-28010	Link, Rear Door Lock Remote Control, Rh
69714	69714-28030	Link, Rear Door Lock Remote Control, Lh
69741	69741-87003-B5	Knob, Rear Door Lock Control
69741	69741-87003-B8	Knob, Front Door Lock Control (Dark Gray)
69751	69751-12060-B2	Holder, Rear Door Lock Contral Knob
9011906423	90119-06423	BOLT WWASHER
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880028	90148-80028	SCREW, HEX LOBULAR
9014960106	90149-60106	New Genuine Part
9015980054	90159-80054	New Genuine Part
9015980061	90159-80061	New Genuine Part
9153160608	91531-60608	BOLT FLANGE

OEM	Part name	Category
69070-28050-B1	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69130-28020	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69140-28040	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69230-28040	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69230-28051	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69240-28040	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69240-28061	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69330-28010	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69330-28030	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69330-28040	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69340-28020	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69340-28070	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69340-28110	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69370-28040	Lock Assy, Slide Door, Front Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69380-28040	Lock Assy, Slide Door, Front Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69394-28010	Cover, Rear Door Lock, Outer Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69413-28020	Shim, Door Lock Striker	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69440-28010	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69440-28020	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69470-28060	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69470-28070	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69630-28080	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69630-28100	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69640-28110	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69640-28130	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69713-28010	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69714-28030	Link, Rear Door Lock Remote Control, Lh	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69741-87003-B5	Knob, Rear Door Lock Control	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69741-87003-B8	Knob, Front Door Lock Control (Dark Gray)	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
69751-12060-B2	Holder, Rear Door Lock Contral Knob	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90119-06423	BOLT WWASHER	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90148-60022	BOLT	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90148-80028	SCREW, HEX LOBULAR	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90149-60106	New Genuine Part	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90159-80054	New Genuine Part	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
90159-80061	New Genuine Part	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
91531-60608	BOLT FLANGE	Rear Door Lock & Handle ([11.1996 - ] (9611- )5D)
