Search › Model › KR27

KR27

Toyota LITE-TOWNACE · 1992 · 4,127 parts · 209 categories

4,127 items

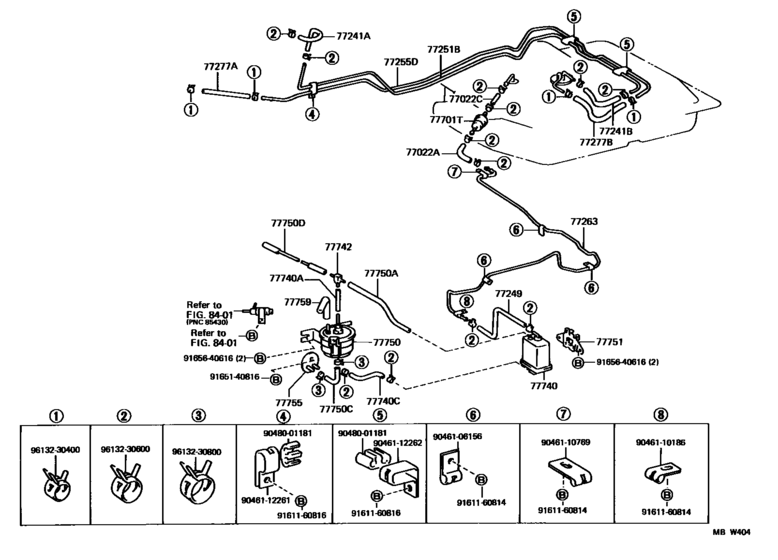

Fuel Tank & Tube ([01.1992 - ] (9201- )KR27) 44

#	OEM	Part name
77022	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77022	95337-06020	Hose, Differential Pressure Control
77022	95333-06010	Hose, Fuel
77241	77279-28020	Hose, Fuel, No.1 (For Main Tube, No.1)
77249	77249-28090	Hose, Fuel Emission
77251	77251-28100	Tube, Fuel Main
77251	77251-28061	Tube, Fuel Main, No.1
77255	77255-28080	Tube, Fuel Return
77255	77255-28070	Tube, Fuel Return
77263	77263-28080	Tube, Fuel Tank To Canister, No.3
77277	95333-04040	Hose(For Fuel Pump To Fuel Tube)
77277	95333-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77701	90917-10069	Valve, Check (For Main Fuel Tank)
77701	90917-10082	Hose, Fuel, No.1 (For Breather Valve)
77740	77704-28060	Canister Assy, Charcoal
77740	77740-27110	Canister Assy, Charcoal
77740	90999-92002	Air Hose (300 mm)
77740	90445-12121	Hose, Fuel, No.2(For Charcoal Canister)
77740	95325-07022	Hose, Fuel, No.1(For Charcoal Canister)
77742	90413-04005	Way, 3, No.1 (For Front Drive Shift)
77750	77740-28090	Canister Assy, Charcoal
77750	90910-05165	Hose, Fuel, No.3 (For Charcoal Canister)
77750	95413-49939	Hose, Fuel, No.1(For Charcoal Canister)
77751	77751-28060	Bracket, Charcoal Canister Base
77755	77755-28011	Bracket, Charcoal Canister Outlet Hose
77759	77759-14011	Hose, Fuel, No.1 (For Charcoal Canister)
9046106156	90461-06156	New Genuine Part
9046110186	90461-10186	New Genuine Part
9046110769	90461-10769	New Genuine Part
9046112261	90461-12261	New Genuine Part
9046112262	90461-12262	New Genuine Part
9048001181	90480-01181	New Genuine Part
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9165140816	91651-40816	BOLT
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
77249-28090	Hose, Fuel Emission	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77251-28061	Tube, Fuel Main, No.1	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77251-28100	Tube, Fuel Main	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77255-28070	Tube, Fuel Return	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77255-28080	Tube, Fuel Return	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77263-28080	Tube, Fuel Tank To Canister, No.3	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77279-28020	Hose, Fuel, No.1 (For Main Tube, No.1)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77704-28060	Canister Assy, Charcoal	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77740-27110	Canister Assy, Charcoal	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77740-28090	Canister Assy, Charcoal	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77751-28060	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77755-28011	Bracket, Charcoal Canister Outlet Hose	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
77759-14011	Hose, Fuel, No.1 (For Charcoal Canister)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90445-12121	Hose, Fuel, No.2(For Charcoal Canister)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90461-06156	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90461-10186	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90461-10769	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90461-12261	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90461-12262	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90480-01181	New Genuine Part	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90910-05165	Hose, Fuel, No.3 (For Charcoal Canister)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90917-10069	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90917-10082	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
90999-92002	Air Hose (300 mm)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91611-60814	Bolt	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91611-B0816	Bolt	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91651-40816	BOLT	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91651-60614	Bolt	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
91656-40616	Bolt	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95325-07022	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95333-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95333-04040	Hose(For Fuel Pump To Fuel Tube)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
95413-49939	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([01.1992 - ] (9201- )KR27)
