Search › Model › KR27

KR27

Toyota LITE-TOWNACE · 1992 · 4,127 parts · 209 categories

4,127 items

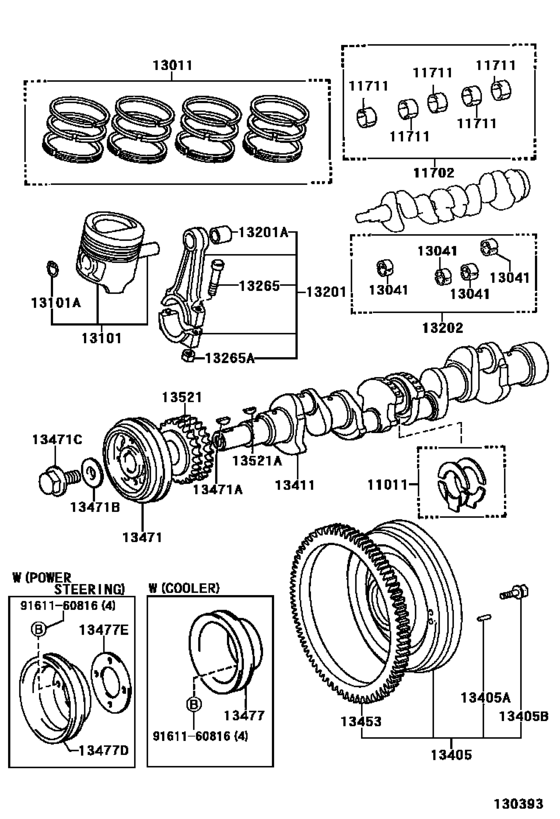

Crankshaft & Piston ([01.1992 - ] (9201- )5KJ) 48

#	OEM	Part name
11011	11011-11010	Washer Set, Crankshaft Thrust
11011	11011-22011	Washer Set, Crankshaft Thrust
11702	11704-13011	Bearing Set, Crankshaft
11702	11704-13012	Bearing Set, Crankshaft
11702	11705-13011	Bearing Set, Crankshaft
11702	11705-13012	Bearing Set, Crankshaft
11711	11701-13011-03	Bearing, Crankshaft
11711	11701-13012-03	Bearing, Crankshaft
11711	11701-13011-04	Bearing, Crankshaft
11711	11701-13012-04	Bearing, Crankshaft
11711	11701-13011-05	Bearing, Crankshaft
11711	11701-13012-05	Bearing, Crankshaft
11711	11701-13011-06	Bearing, Crankshaft
11711	11701-13012-06	Bearing, Crankshaft
11711	11701-13011-07	Bearing, Crankshaft
11711	11701-13012-07	Bearing, Crankshaft
13011	13011-13090	Ring Set, Piston
13011	13013-13090	Ring Set, Piston
13041	13041-13040-03	Bearing, Connecting Rod
13041	13041-13040-04	Bearing, Connecting Rod
13041	13041-13040-05	Bearing, Connecting Rod
13041	13041-13040-06	Bearing, Connecting Rod
13041	13041-13040-07	Bearing, Connecting Rod
13101	13101-13030-01	Piston Sub-Assy, W/pin
13101	13101-13030-02	Piston Sub-Assy, W/pin
13101	13101-13030-03	Piston Sub-Assy, W/pin
13101	13103-13030	Piston Sub-Assy, W/pin
13101	90521-21088	Ring, Hole Snap(For Piston Pin)
13201	13201-13010	Rod Sub-Assy, Connecting
13201	90999-73070	Bush(For Connecting Rod Small End)
13202	13204-13040	Bearing Set, Connecting Rod
13202	13205-13040	Bearing Set, Connecting Rod
13202	13206-13040	Bearing Set, Connecting Rod
13265	13265-70020	Bolt, Connecting Rod
13265	90179-09006	Nut, Hexagon(For Connecting Rod Bolt)
13411	13411-13900	Crankshaft
13411	13411-13903	Crankshaft
13471	13408-13010	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90280-05010	Key(For Oil Pump Drive Spline)
13471	90209-13003	Washer, Plate(For Crankshaft Pulley Set)
13471	90105-12051	Bolt(For Crankshaft Pulley Set)
13477	88451-27020	Pulley, Crankshaft, No.2
13477	44319-27020	Pulley, Crankshaft, No.2
13477	44318-27010	Spacer, Crankshaft Pulley, No.2
13521	13521-13020	Gear Or Sprocket, Crankshaft Timing
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
11011-11010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11011-22011	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13011-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13011-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13011-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13011-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13011-07	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13012-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13012-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13012-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13012-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11701-13012-07	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11704-13011	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11704-13012	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11705-13011	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
11705-13012	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13011-13090	Ring Set, Piston	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13013-13090	Ring Set, Piston	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13041-13040-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13041-13040-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13041-13040-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13041-13040-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13041-13040-07	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13101-13030-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13101-13030-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13101-13030-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13103-13030	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13201-13010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13204-13040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13205-13040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13206-13040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13265-70020	Bolt, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13408-13010	Pulley, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13411-13900	Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13411-13903	Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
13521-13020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
44318-27010	Spacer, Crankshaft Pulley, No.2	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
44319-27020	Pulley, Crankshaft, No.2	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
88451-27020	Pulley, Crankshaft, No.2	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90105-12051	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90179-09006	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90209-13003	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90521-21088	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
90999-73070	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)
91611-B0816	Bolt	Crankshaft & Piston ([01.1992 - ] (9201- )5KJ)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 209
Collected: 2026-08-04
