Search › Model › KR26

KR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,344 parts · 164 categories

3,344 items

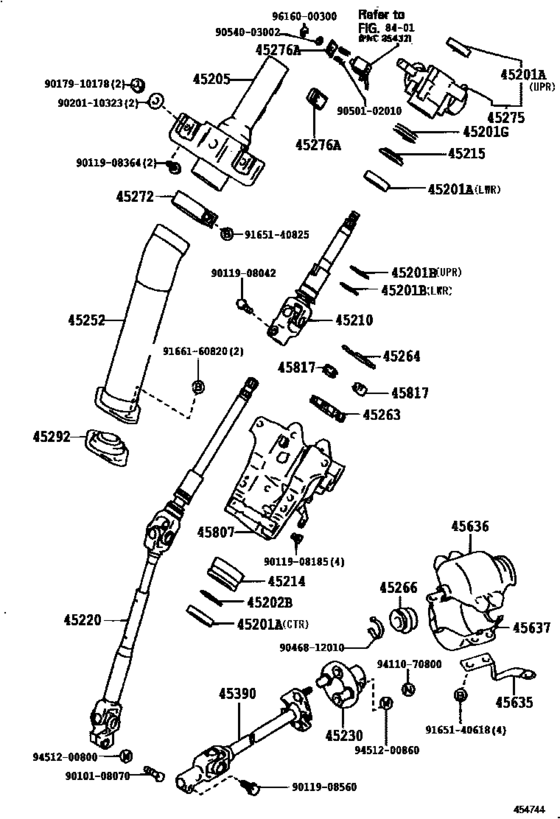

Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- )) 41

#	OEM	Part name
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45202	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45205	45205-28060	Tube Sub-Assy, Steering Column
45210	45210-28060	Shaft Assy, Steering Main
45210	45210-28061	Shaft Assy, Steering Main
45230	45230-27080	Coupling Assy, Flexible
45252	45252-28080	Tube, Steering Column, Lower
45263	45263-32010	Ring, Steering Column, No.1
45266	45266-27020	Plate, Steering Column Hole Cover
45266	45266-27021	Cover, Steering Intermediate Shaft Dust
45272	45272-28030	Clamp, Steering Column, Lower
45275	45280-28051	Bracket, Steering Column, Upper
45275	45280-28111	Bracket, Steering Column, Upper
45292	45292-28030	Seal, Main Shaft Lower Dust
45390	45390-28040	Shaft Assy, Steering Torque
45635	45635-28010	Support, Intermediate Link Joint Protector
45635	45635-28011	Support, Intermediate Link Joint Protector
45636	45636-27010	Protector, Intermediate Link Joint, Upper
45637	45637-27010	Protector, Inter Link Joint, Lwr No.1
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011908042	90119-08042	Bolt(For Power Steering Pressure Control Valve)
9011908185	90119-08185	New Genuine Part
9011908185	90119-08165	New Genuine Part
9011908364	90119-08364	Bolt
9017910178	90179-10178	New Genuine Part
9020110323	90201-10323	New Genuine Part
9046812010	90468-12010	New Genuine Part
9050102010	90501-02010	New Genuine Part
9054003002	90540-03002	New Genuine Part
9165140618	91651-40618	New Genuine Part
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9166160820	91661-60820	New Genuine Part
9166160820	91661-B0820	Bolt
9411070800	94110-70800	Nut, No.1 (For Center Support Bearing)
9411070800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451200860	94512-00860	New Genuine Part
9616000300	96160-00300	Ring, E (For Control Shaft Upper Bracket Shaft Stopper)

OEM	Part name	Category
45205-28060	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45210-28060	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45210-28061	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45230-27080	Coupling Assy, Flexible	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45252-28080	Tube, Steering Column, Lower	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45263-32010	Ring, Steering Column, No.1	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45266-27020	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45266-27021	Cover, Steering Intermediate Shaft Dust	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45272-28030	Clamp, Steering Column, Lower	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45280-28051	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45280-28111	Bracket, Steering Column, Upper	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45292-28030	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45390-28040	Shaft Assy, Steering Torque	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45635-28010	Support, Intermediate Link Joint Protector	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45635-28011	Support, Intermediate Link Joint Protector	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45636-27010	Protector, Intermediate Link Joint, Upper	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
45637-27010	Protector, Inter Link Joint, Lwr No.1	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90119-08042	Bolt(For Power Steering Pressure Control Valve)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90119-08165	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90119-08185	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90119-08364	Bolt	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90179-10178	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90201-10323	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90468-12010	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90501-02010	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
90540-03002	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
91651-40618	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
91661-60820	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
91661-B0820	Bolt	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
94110-70800	Nut, No.1 (For Center Support Bearing)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
94512-00860	New Genuine Part	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
96160-00300	Ring, E (For Control Shaft Upper Bracket Shaft Stopper)	Steering Column & Shaft ([08.1988 - ] W/TEMS (8808- ))
