Search › Model › KR26

KR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,344 parts · 164 categories

3,344 items

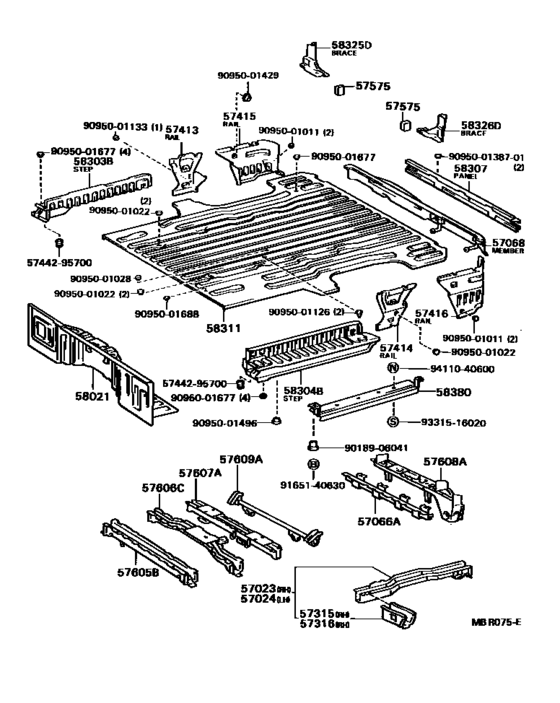

Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D) 49

#	OEM	Part name
57023	57023-87018	Member Sub-Assy, Rear Side, Rh
57066	57066-87001	Member Sub-Assy, Rear Floor Cross, No.6
57066	57066-87002	Member Sub-Assy, Rear Floor Cross, No.6
57068	57068-87006	Member Sub-Assy, Rear Floor Rear Cross, Inner
57315	57315-87005	Outrigger, No.3 Rh
57315	57315-28080	Outrigger, No.3 Rh
57316	57316-87007	Outrigger, No.3 Lh
57316	57316-28040	Outrigger, No.3 Lh
57413	57405-87013	Rail, Floor Side, Center Rh
57414	57406-87003	Rail, Floor Side, Center Lh
57415	57047-87008	Rail, Floor Side, Rear Rh
57415	57047-87007	Rail, Floor Side, Rear Rh
57416	57048-87010	Rail, Floor Side, Rear Lh
57416	57048-87009	Rail, Floor Side, Rear Lh
57575	57575-87002	Pad, Dustproof Floor, Rear
57605	57605-87033	Member Sub-Assy, Rear Floor Cross, No.1
57605	57605-28190	Member Sub-Assy, Rear Floor Cross, No.1
57607	57607-87036	Member Sub-Assy, Rear Floor Cross, No.3
57607	57607-28230	Member Sub-Assy, Rear Floor Cross, No.3
57608	57608-87010	Member Sub-Assy, Rear Floor Cross, No.4
57608	57608-28060	Member Sub-Assy, Rear Floor Cross, No.4
57609	57609-87002	Member Sub-Assy, Rear Floor Cross, No.5
57609	57609-28070	Member Sub-Assy, Rear Floor Cross, No.5
58021	58021-87078	Panel Sub-Assy, Header
58021	58021-28470	Panel Sub-Assy, Header
58303	58303-87001	Step Sub-Assy, Rear Floor, Rh
58304	58304-87004	Step Sub-Assy, Rear Floor, Lh
58307	58307-87004	Panel Sub-Assy, Body Lower Back
58311	58311-87025	Pan, Rear Floor
58311	58311-28390	Pan, Rear Floor
58325	58325-87001	Brace, Rear Floor Panel, Rh
58326	58326-87001	Brace, Rear Floor Panel, Lh
58380	58380-29015	Cover Assy, Rear Floor Step Under
5744295700	57442-95700	Plug, Step Panel Hole
9018906041	90189-06041	New Genuine Part
9095001011	90950-01011	Grommet(For Upper Back Panel)
9095001022	90950-01022	Plug, Hole, No.1(For Dash Panel)
9095001022	90950-01882	Cover, Hole
9095001028	90950-01028	New Genuine Part
9095001126	90950-01126	Grommet, Safety Band Anchorage Nut
9095001133	90950-01133	Plug, Hole(For Front Fender Apron)
9095001429	90950-01429	PLUG
9095001496	90950-01496	New Genuine Part
9095001677	90950-01677	New Genuine Part
9095001688	90950-01688	New Genuine Part
9165140630	91651-40630	BOLT
9331516020	93315-16020	Screw
9411040600	94110-40600	Nut, Rock
909500138701	90950-01387-01	New Genuine Part

OEM	Part name	Category
57023-87018	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57047-87007	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57047-87008	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57048-87009	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57048-87010	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57066-87001	Member Sub-Assy, Rear Floor Cross, No.6	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57066-87002	Member Sub-Assy, Rear Floor Cross, No.6	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57068-87006	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57315-28080	Outrigger, No.3 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57315-87005	Outrigger, No.3 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57316-28040	Outrigger, No.3 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57316-87007	Outrigger, No.3 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57405-87013	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57406-87003	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57442-95700	Plug, Step Panel Hole	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57575-87002	Pad, Dustproof Floor, Rear	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57605-28190	Member Sub-Assy, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57605-87033	Member Sub-Assy, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57607-28230	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57607-87036	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57608-28060	Member Sub-Assy, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57608-87010	Member Sub-Assy, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57609-28070	Member Sub-Assy, Rear Floor Cross, No.5	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
57609-87002	Member Sub-Assy, Rear Floor Cross, No.5	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58021-28470	Panel Sub-Assy, Header	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58021-87078	Panel Sub-Assy, Header	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58303-87001	Step Sub-Assy, Rear Floor, Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58304-87004	Step Sub-Assy, Rear Floor, Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58307-87004	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58311-28390	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58311-87025	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58325-87001	Brace, Rear Floor Panel, Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58326-87001	Brace, Rear Floor Panel, Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
58380-29015	Cover Assy, Rear Floor Step Under	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90189-06041	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01011	Grommet(For Upper Back Panel)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01022	Plug, Hole, No.1(For Dash Panel)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01028	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01126	Grommet, Safety Band Anchorage Nut	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01133	Plug, Hole(For Front Fender Apron)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01387-01	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01429	PLUG	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01496	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01677	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01688	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
90950-01882	Cover, Hole	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
91651-40630	BOLT	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
93315-16020	Screw	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
94110-40600	Nut, Rock	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V5D)
