Search › Model › KR26

KR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,344 parts · 164 categories

3,344 items

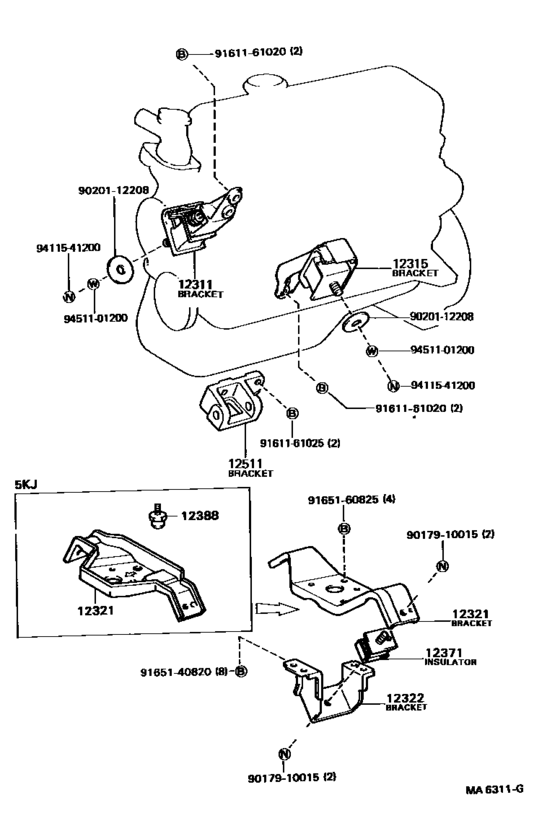

Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ) 20

#	OEM	Part name
12311	12301-13090	Bracket, Engine Mounting, Front No.1 Rh
12315	12302-13091	Bracket, Engine Mounting, Front No.1 Lh
12315	12302-13092	Bracket, Engine Mounting, Front No.1 Lh
12321	12321-13030	Bracket, Engine Mounting, Rear, No.1
12322	12322-13030	Bracket, Engine Mounting, Rear No.2
12322	12326-13010	Bracket, Engine Mounting, Rear No.2
12371	12371-13051	Insulator, Engine Mounting, Rear No.1
12511	12511-24011	Bracket, Alternator, No.1
9017910015	90179-10015	NUT
9020112208	90201-12208	WASHER
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9165140820	91651-40820	Bolt
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9451101200	94511-01200	WASHER

OEM	Part name	Category
12301-13090	Bracket, Engine Mounting, Front No.1 Rh	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12302-13091	Bracket, Engine Mounting, Front No.1 Lh	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12302-13092	Bracket, Engine Mounting, Front No.1 Lh	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12321-13030	Bracket, Engine Mounting, Rear, No.1	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12322-13030	Bracket, Engine Mounting, Rear No.2	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12326-13010	Bracket, Engine Mounting, Rear No.2	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12371-13051	Insulator, Engine Mounting, Rear No.1	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
12511-24011	Bracket, Alternator, No.1	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
90179-10015	NUT	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
90201-12208	WASHER	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91611-61020	Bolt(For Transaxle & Engine Setting)	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91611-61025	Bolt(For Transaxle & Engine Setting)	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91612-61025	Bolt (For Control Shaft Cover)	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91651-40820	Bolt	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
94115-41200	Nut	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
94130-61200	Nut	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)
94511-01200	WASHER	Mounting ([08.1988 - 08.1990] (8808-9008)4KJ ; (9008- )5KJ)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 164
Collected: 2026-08-04
