KR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,344 parts · 164 categories
KR26 ×

← Back to categories

3,344 items

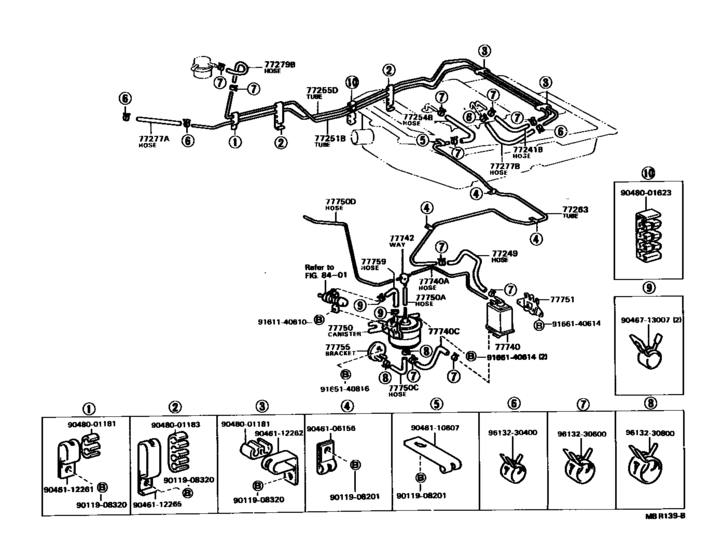

Fuel Tank & Tube ([08.1988 - ] (8808- )KR2#) 46
#OEMPart name
77241 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77249 77249-28060 Hose, Fuel Emission
77251 77251-28061 Tube, Fuel Main, No.1
77255 77255-28041 Tube, Fuel Return
77263 77263-28070 Tube, Fuel Tank To Canister, No.3
77277 95333-04040 Hose(For Fuel Pump To Fuel Tube)
77277 95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77279 77279-28020 Hose, Fuel, No.1 (For Main Tube, No.1)
77740 77704-28060 Canister Assy, Charcoal
77740 77740-27110 Canister Assy, Charcoal
77740 90999-92002 Air Hose (300 mm)
77740 90445-12121 Hose, Fuel, No.2(For Charcoal Canister)
77740 95325-07022 Hose, Fuel, No.1(For Charcoal Canister)
77742 90413-04005 Way, 3, No.1 (For Front Drive Shift)
77750 77740-28090 Canister Assy, Charcoal
77750 90910-05165 Hose, Fuel, No.3 (For Charcoal Canister)
77750 95413-49945 Hose, Fuel, No.1(For Charcoal Canister)
77751 77751-28060 Bracket, Charcoal Canister Base
77755 77755-28011 Bracket, Charcoal Canister Outlet Hose
77759 77759-14011 Hose, Fuel, No.1 (For Charcoal Canister)
9011908201 90119-08201 Bolt (for Transmission Control Cable Bracket)
9011908201 91611-60814 Bolt
9011908201 90119-A0310 Bolt (For Transmission Control Cable Bracket)
9011908320 90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock)
9011908320 91611-B0816 Bolt
9046106156 90461-06156 New Genuine Part
9046110607 90461-10607 New Genuine Part
9046112261 90461-12261 New Genuine Part
9046112262 90461-12262 New Genuine Part
9046112265 90461-12265 New Genuine Part
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048001181 90480-01181 New Genuine Part
9048001183 90480-01183 New Genuine Part
9048001623 90480-01623 Clamp, Brake Tube, No.8
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9165140816 91651-40816 BOLT
9166140614 91661-40614 New Genuine Part
9166140614 91661-A0614 New Genuine Part
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
