Search › Model › KR21

KR21

Toyota LITEACE · 1992 · 3,363 parts · 159 categories

3,363 items

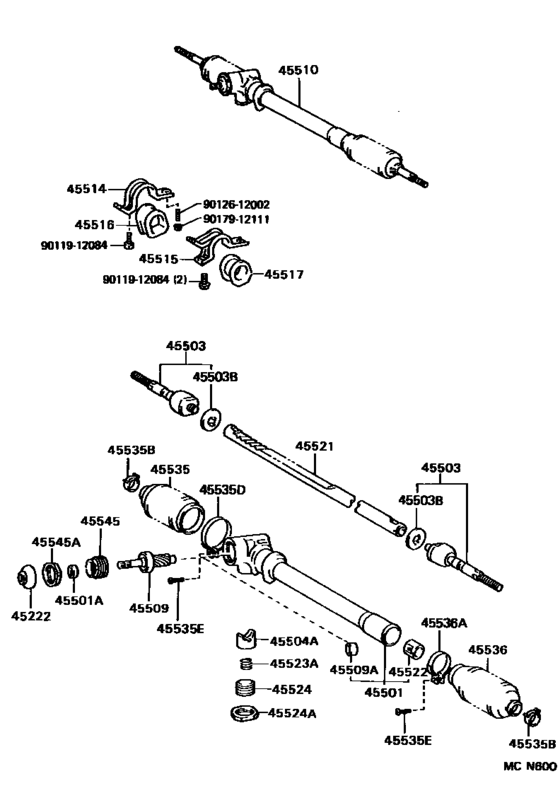

Front Steering Gear & Link ([01.1992 - ] (9201- )) 45

#	OEM	Part name
45046	45046-29185	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45222	45222-27020	Cover, Steering Gear Dust
45501	45501-28040	Housing Sub-Assy, Steering Rack
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-29415	End Sub-Assy, Steering Rack
45503	45503-29675	End Sub-Assy, Steering Rack
45503	90214-14005	Washer, Claw(For Power Steering Rack End)
45504	45504-28010	Guide Sub-Assy, Rack
45504	45504-28011	Guide Sub-Assy, Rack
45509	45509-27020	Pinion Sub-Assy, Steering
45509	90364-12004	Bearing(For Power Steering Control Valve Lower)
45510	45510-28060	Gear Assy, Steering
45514	45514-28020	Bracket, Steering Rack Housing, No.1
45515	45515-27010	Bracket, Steering Rack Housing, No.2
45515	45515-28020	Bracket, Steering Rack Housing, No.2
45516	45516-27010	Grommet, Steering Rack Housing, No.1
45517	45517-27010	Grommet, Steering Rack Housing, No.2
45521	45521-28020	Rack, Steering
45522	45522-27010	Bush, Steering Rack
45523	90501-40031	Spring(For Steering Gear Rack Guide)
45524	45524-28010	Cap, Steering Rack Guide Spring
45524	90179-45002	Nut(For Steering Rack Guide Spring Cap)
45535	45535-27040	Boot, Steering Rack, No.1
45535	90467-19012	Clip
45535	90467-19019	Clip
45535	90460-50003	Clamp(For Steering Rack Boot)
45535	90149-30004	Screw(For Steering Rack Boot Clamp)
45536	45536-27030	Boot, Steering Rack, No.2
45536	90460-42003	Clamp(For Steering Rack Boot No.2)
45545	45545-27010	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
45611	45611-28031	Arm, Steering Knuckle, Rh
45611	45611-28040	Arm, Steering Knuckle, Rh
45611	90106-10032	Bolt, Round Hexagon (For Steering Knuckle Stopper)
45612	45612-28031	Arm, Steering Knuckle, Lh
45612	45612-28040	Arm, Steering Knuckle, Lh
45619	45619-14020	Cover, Front Knuckle Stopper
9011912084	90119-12084	New Genuine Part
9012612002	90126-12002	New Genuine Part
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017014012	90170-14012	Nut, Rack End Lock
9017912111	90179-12111	New Genuine Part
9025203006	90252-03006	New Genuine Part
9453101000	94531-01000	WASHER

OEM	Part name	Category
45046-29185	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45222-27020	Cover, Steering Gear Dust	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45501-28040	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45503-29415	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45503-29675	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45504-28010	Guide Sub-Assy, Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45504-28011	Guide Sub-Assy, Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45509-27020	Pinion Sub-Assy, Steering	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45510-28060	Gear Assy, Steering	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45514-28020	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45515-27010	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45515-28020	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45516-27010	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45517-27010	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45521-28020	Rack, Steering	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45522-27010	Bush, Steering Rack	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45524-28010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45535-27040	Boot, Steering Rack, No.1	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45536-27030	Boot, Steering Rack, No.2	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45545-27010	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45611-28031	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45611-28040	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45612-28031	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45612-28040	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([01.1992 - ] (9201- ))
45619-14020	Cover, Front Knuckle Stopper	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90106-10032	Bolt, Round Hexagon (For Steering Knuckle Stopper)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90119-12084	New Genuine Part	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90126-12002	New Genuine Part	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90149-30004	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90179-12111	New Genuine Part	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90179-45002	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90214-14005	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90252-03006	New Genuine Part	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90364-12004	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90460-42003	Clamp(For Steering Rack Boot No.2)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90460-50003	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90467-19012	Clip	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90467-19019	Clip	Front Steering Gear & Link ([01.1992 - ] (9201- ))
90501-40031	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([01.1992 - ] (9201- ))
94531-01000	WASHER	Front Steering Gear & Link ([01.1992 - ] (9201- ))
