Search › Model › KR12V

KR12V

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 3,316 parts · 158 categories

3,316 items

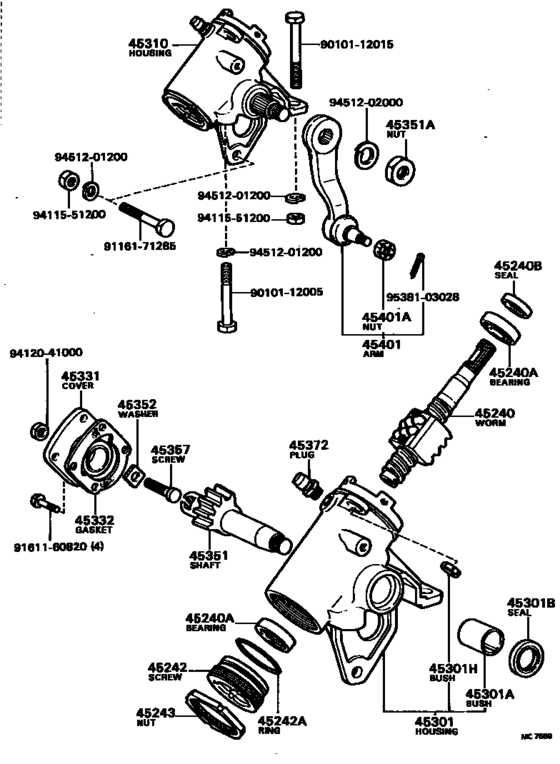

Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#) 41

#	OEM	Part name
45240	45240-28010	Worm Assy, Steering
45240	90363-19001	Bearing(For Steering Worm)
45240	90369-19001	Bearing(For Steering Worm)
45240	90369-41017	Bearing(For Steering Worm)
45240	90311-19001	Seal, Oil(For Steering Worm)
45242	45242-28010	Screw, Worm Bearing Adjusting
45242	45242-28020	Screw, Worm Bearing Adjusting
45242	90301-55001	Ring, O(For Worm Bearing Adjusting Screw)
45243	45243-22030	Nut, Worm Bearing Adjusting Screw Lock
45301	45301-28010	Housing Sub-Assy, Steering Gear
45301	45301-28020	Housing Sub-Assy, Steering Gear
45301	90999-73008	Bush Or Bearing, Sector Shaft, No.1
45301	90310-28027	Seal, Oil(For Sector Shaft)
45301	90386-17003	Bush Or Bearing, Sector Shaft, No.2
45310	45310-28010	Housing Assy, Steering Gear
45310	45310-28020	Housing Assy, Steering Gear
45331	45304-28010	Cover, Sector Shaft End
45332	45332-28010	Gasket, Sector Shaft End Cover
45351	45351-28010	Shaft, Steering Sector
45351	90170-20147	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45352	45352-20010	Washer, Sector Shaft Thrust
45352	45353-20010	Washer, Sector Shaft Thrust
45352	45354-20010	Washer, Sector Shaft Thrust
45352	45355-20010	Washer, Sector Shaft Thrust
45352	45356-20010	Washer, Sector Shaft Thrust
45357	45357-28010	Screw, Sector Shaft Adjusting
45372	90345-53012	Plug, Steering Gear Housing Oil
45372	90930-03058	Plug, Breather (For Winch Gear Case)
45401	45401-29105	Arm Sub-Assy, Pitman
45401	90171-14042	Nut, Castle(For Pitman Arm)
9010112005	90101-12005	New Genuine Part
9010112015	90101-12015	New Genuine Part
9116171285	91161-71285	New Genuine Part
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9451201200	94512-01200	Washer
9451202000	94512-02000	New Genuine Part
9538103028	95381-03028	PIN

OEM	Part name	Category
45240-28010	Worm Assy, Steering	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45242-28010	Screw, Worm Bearing Adjusting	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45242-28020	Screw, Worm Bearing Adjusting	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45243-22030	Nut, Worm Bearing Adjusting Screw Lock	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45301-28010	Housing Sub-Assy, Steering Gear	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45301-28020	Housing Sub-Assy, Steering Gear	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45304-28010	Cover, Sector Shaft End	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45310-28010	Housing Assy, Steering Gear	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45310-28020	Housing Assy, Steering Gear	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45332-28010	Gasket, Sector Shaft End Cover	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45351-28010	Shaft, Steering Sector	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45352-20010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45353-20010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45354-20010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45355-20010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45356-20010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45357-28010	Screw, Sector Shaft Adjusting	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
45401-29105	Arm Sub-Assy, Pitman	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90101-12005	New Genuine Part	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90101-12015	New Genuine Part	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90170-20147	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90170-A0002	Nut	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90171-14042	Nut, Castle(For Pitman Arm)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90301-55001	Ring, O(For Worm Bearing Adjusting Screw)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90310-28027	Seal, Oil(For Sector Shaft)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90311-19001	Seal, Oil(For Steering Worm)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90345-53012	Plug, Steering Gear Housing Oil	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90363-19001	Bearing(For Steering Worm)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90369-19001	Bearing(For Steering Worm)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90369-41017	Bearing(For Steering Worm)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90386-17003	Bush Or Bearing, Sector Shaft, No.2	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90930-03058	Plug, Breather (For Winch Gear Case)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
90999-73008	Bush Or Bearing, Sector Shaft, No.1	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
91161-71285	New Genuine Part	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
91611-60820	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
91611-G0820	Bolt	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
94120-41000	Nut(For Clutch Pedal Stopper)	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
94512-01200	Washer	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
94512-02000	New Genuine Part	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)
95381-03028	PIN	Steering Column & Shaft ([01.1981 - ] (8101- )KR12,TR1#)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 158
Collected: 2026-08-04
