Search › Model › KR12V

KR12V

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 3,316 parts · 158 categories
KR12V ×

← Back to categories

3,316 items

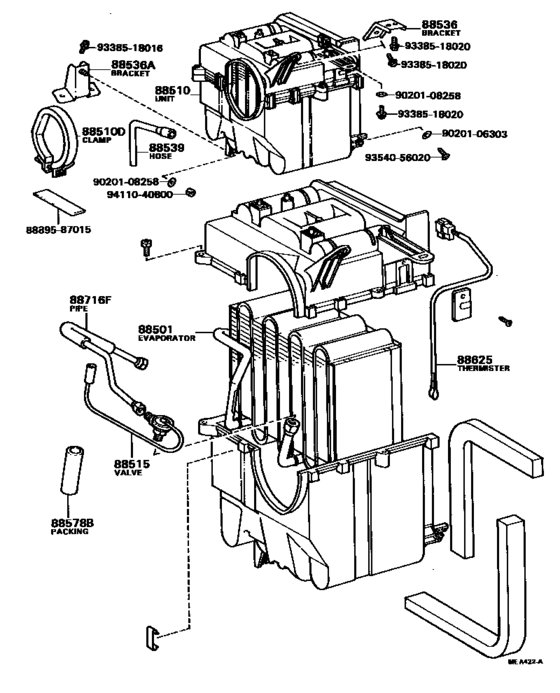

Heating & Air Conditioning - Cooler Unit ([01.1981 - ] (8101- )KR12,TR1#) 48
#OEMPart name
88501 88501-87002 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87003 Evaporator Sub-Assy, Cooler, No.1
88510 88510-87003 Unit Assy, Cooler
88510 88510-87008 Unit Assy, Cooler
88510 88575-87001 Clamp, Cooler Unit
88515 88515-12051 Valve, Cooler Expansion
88515 88515-20040 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88536 88536-87009 Bracket, Cooling Unit, No.1
88536 88688-87005 Bracket, Cooling Unit, No.1
88536 88536-87006 Bracket, Cooling Unit, No.2
88536 88536-87007 Bracket, Cooling Unit, No.2
88536 88688-87004 Bracket, Cooling Unit, No.2
88539 88530-87002 Hose, Cooler Unit Drain, No.1
88539 88539-12010 Hose, Cooler Unit Drain, No.1
88539 88539-22011 Hose, Cooler Unit Drain, No.1
88578 88578-12100 Packing, Cooling Unit, No.1
88578 88578-30360 Packing, Cooler Pipe, No.1
88578 88578-14030 Packing, Cooler Stabilizer Amplifier
88578 88895-95703 Packing, Air Duct
88605 88605-87011 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-87017 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-87021 Harness Sub-Assy, Cooler Wiring, No.2
88625 88625-20040 Thermistor, Cooler, No.1
88625 88625-87001 Thermistor, Cooler, No.1
88630 88630-14010 Relay Assy (For Heater Blower Motor)
88650 88650-14010 Amplifier Assy, Cooler Stabilizer
88650 88650-12050 Amplifier Assy, Cooler Stabilizer
88688 88688-87002 Bracket, Cooler Stabilizer Amplifier
88688 88688-87009 Bracket, Cooler Stabilizer Amplifier
88716 88716-87018 Pipe, Cooler Refrigerant Liquid, F
8856922190 88569-22190 Clamp (for Cooler Relay)
8856987002 88569-87002 Clamp (for Cooler Relay)
8856990400 88569-90400 Clamp (for Cooler Relay)
8889587014 88895-87014 Holder, Fuse
8889587015 88895-87015 Holder, Fuse
9009900930 90099-00930 New Genuine Part
9009900932 90099-00932 New Genuine Part
9020106303 90201-06303 New Genuine Part
9020108258 90201-08258 New Genuine Part
9331515012 93315-15012 SCREWWWASHER
9338516016 93385-16016 New Genuine Part
9338518016 93385-18016 New Genuine Part
9338518020 93385-18020 New Genuine Part
9354016016 93540-16016 New Genuine Part
9354056020 93540-56020 SCREW
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
