KR11V

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,070 parts · 145 categories

3,070 items

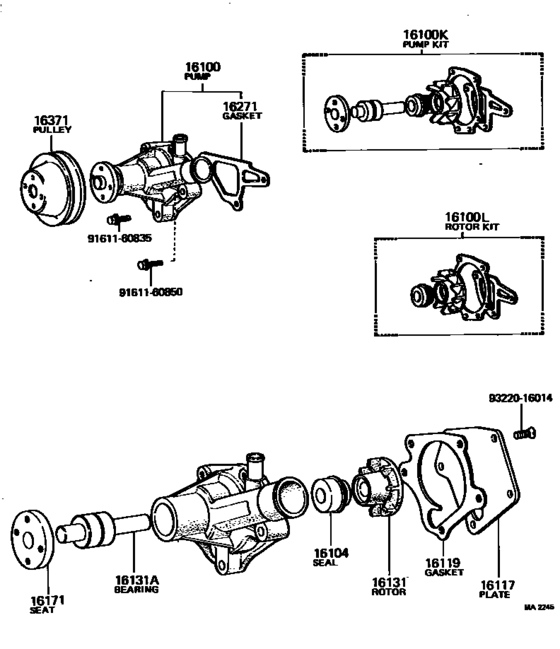

Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ) 23

#	OEM	Part name
16100	16100-29028	Pump Assy, Engine Water
16100	16100-29066	Pump Assy, Engine Water
16100	04161-13010	Pump Kit, Water
16100	04161-13013	Pump Kit, Water
16100	04162-13010	Rotor Kit, Water Pump
16100	04162-13013	Rotor Kit, Water Pump
16104	16104-41110	Seal Set, Water Pump
16104	16104-15020	Seal Set, Water Pump
16117	16117-13010	Plate, Water Pump
16119	16124-22010	Gasket, Water Pump Body
16119	16124-24015	Gasket, Water Pump Body
16131	16131-13010	Rotor, Water Pump
16131	16131-13011	Rotor, Water Pump
16131	90369-30063	Bearing, Water Pump
16171	16171-24031	Seat, Water Pump Pulley
16271	16271-13020	Gasket, Water Pump
16271	16271-13030	Gasket, Water Pump
16271	16271-22010	Gasket, Water Pump
16371	16371-24040	Pulley, Fan
16371	16371-24050	Pulley, Fan
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161160850	91611-60850	Bolt(For Rocker Support Set)
9322016014	93220-16014	SCREW

OEM	Part name	Category
04161-13010	Pump Kit, Water	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
04161-13013	Pump Kit, Water	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
04162-13010	Rotor Kit, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
04162-13013	Rotor Kit, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16100-29028	Pump Assy, Engine Water	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16100-29066	Pump Assy, Engine Water	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16104-15020	Seal Set, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16104-41110	Seal Set, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16117-13010	Plate, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16124-22010	Gasket, Water Pump Body	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16124-24015	Gasket, Water Pump Body	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16131-13010	Rotor, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16131-13011	Rotor, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16171-24031	Seat, Water Pump Pulley	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16271-13020	Gasket, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16271-13030	Gasket, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16271-22010	Gasket, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16371-24040	Pulley, Fan	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
16371-24050	Pulley, Fan	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
90369-30063	Bearing, Water Pump	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
91611-60850	Bolt(For Rocker Support Set)	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
93220-16014	SCREW	Water Pump ([10.1976 - 10.1979] (7610-7910)3KJ,4KJ)
