Search › Model › KR11V

KR11V

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,070 parts · 145 categories

3,070 items

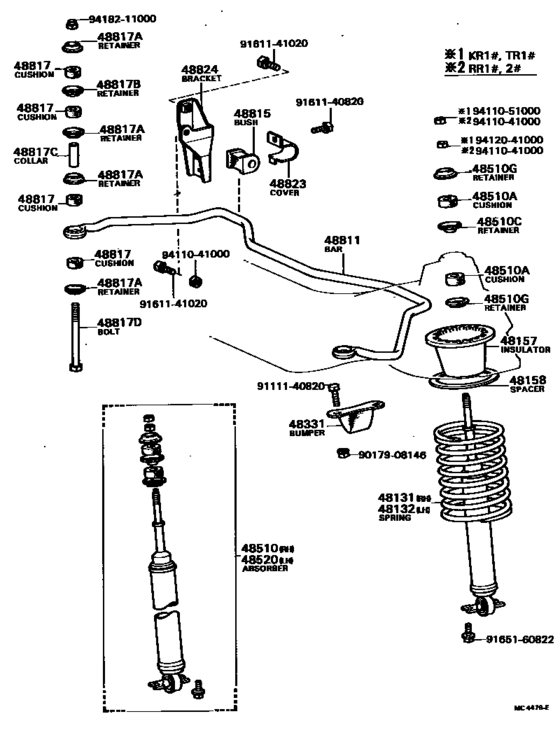

Front Spring & Shock Absorber ([10.1976 - ] (7610- )) 24

#	OEM	Part name
48131	48131-28010	Spring, Front Coil, Rh
48131	48131-28011	Spring, Front Coil, Rh
48157	48157-20010	Insulator, Front Coil Spring, Upper
48158	48158-20010	Spacer, Front Coil Spring
48331	48331-27011	Bumper, Front Spring, No.1
48510	48500-29185	Absorber Assy, Shock, Front Rh
48510	48500-29266	Absorber Assy, Shock, Front Rh
48510	90948-01003	Rubber Cushion
48510	90948-02007	Retainer, Steering Damper Cushion
48510	90948-02002	Retainer, Steering Damper Cushion
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9111140820	91111-40820	New Genuine Part
9111140820	91111-50820	New Genuine Part
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165160822	91651-60822	New Genuine Part
9165160822	91651-B0822	BOLT WWASHER
9411041000	94110-41000	Nut(For Steering Damper)
9411051000	94110-51000	Nut(For Steering Center Arm)
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9418211000	94182-11000	Nut(For Front Support To Front Shock Absorber)

OEM	Part name	Category
48131-28010	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48131-28011	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48157-20010	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48158-20010	Spacer, Front Coil Spring	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48331-27011	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48500-29185	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
48500-29266	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90170-A0002	Nut	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90179-08146	Nut	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90179-08204	Nut	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90948-01003	Rubber Cushion	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90948-02002	Retainer, Steering Damper Cushion	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
90948-02007	Retainer, Steering Damper Cushion	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91111-40820	New Genuine Part	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91111-50820	New Genuine Part	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91611-41020	Bolt(for Transaxle & Engine Setting)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91651-60822	New Genuine Part	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
91651-B0822	BOLT WWASHER	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
94110-41000	Nut(For Steering Damper)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
94110-51000	Nut(For Steering Center Arm)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
94120-41000	Nut(For Clutch Pedal Stopper)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))
94182-11000	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([10.1976 - ] (7610- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 145
Collected: 2026-08-04
