KR10

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1976 · 2,962 parts · 137 categories

2,962 items

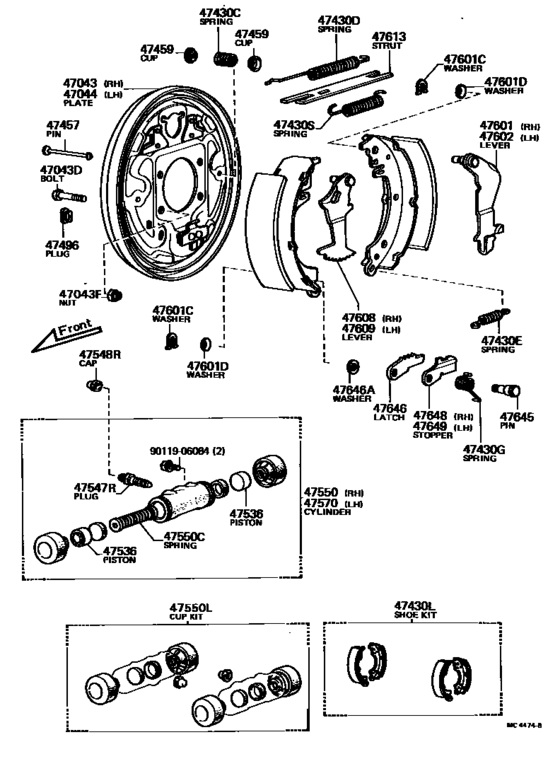

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#) 42

#	OEM	Part name
47043	47043-22031	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)
47044	47044-22031	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-20225	Spring(For Rear Brake Shoe Hold Down)
47430	90506-20201	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-22128	Spring, Tension(For Rear Brake Shoe Return)
47430	90508-18145	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	90508-18146	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	04495-28010	Shoe Kit, Rear Brake
47430	04495-22021	Shoe Kit, Rear Brake
47430	04497-28010	Shoe Kit, Rear Brake
47430	90506-20199	Spring, Tension(For Parking Brake Shoe Strut)
47430	90506-20200	Spring, Tension(For Parking Brake Shoe Strut)
47457	47447-22010	Pin, Shoe Hold Down Spring
47459	47449-20011	Cup, Brake Shoe Hold Down
47496	47491-22010	Plug, Hole(For Rear Brake)
47536	47051-21011	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47051-22031	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-14010	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-29106	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-19125	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47509-12010	Spring, Compression(For Rear Wheel Brake Cylinder)
47550	47509-14010	Spring, Compression(For Rear Wheel Brake Cylinder)
47550	04906-12030	Cup Kit, Rear Wheel Cylinder
47550	04906-14010	Cup Kit, Rear Wheel Cylinder
47601	47601-22021	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47601	90206-10059	Washer, Wave(For Rear Brake)
47602	47602-22021	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47608	47608-22021	Lever Sub-Assy, Automatic Adjust, Rh(For Rear Brake)
47609	47609-22021	Lever Sub-Assy, Automtic Adjust, Lh(For Rear Brake)
47613	47613-22010	Strut, Parking Brake Shoe (For Rear Brake)
47645	47645-22010	Pin, Automatic Adjust Lever(For Rear Brake)
47646	47646-22010	Latch, Automatic Adjust(For Rear Brake)
47646	90201-10316	Washer, Plate(For Rear Brake Automatic Adjust Latch)
47648	47648-22010	Stopper, Automatic Adjust Latch, Rh(For Rear Brake)
47649	47649-22010	Stopper, Automatic Adjust Latch, Lh(For Rear Brake)
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)

OEM	Part name	Category
04495-22021	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
04495-28010	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
04497-28010	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
04906-12030	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
04906-14010	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47043-22031	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47044-22031	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47051-21011	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47051-22031	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47447-22010	Pin, Shoe Hold Down Spring	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47449-20011	Cup, Brake Shoe Hold Down	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47491-22010	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47509-12010	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47509-14010	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47550-14010	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47550-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47550-19125	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47550-29106	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47601-22021	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47602-22021	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47608-22021	Lever Sub-Assy, Automatic Adjust, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47609-22021	Lever Sub-Assy, Automtic Adjust, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47613-22010	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47645-22010	Pin, Automatic Adjust Lever(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47646-22010	Latch, Automatic Adjust(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47648-22010	Stopper, Automatic Adjust Latch, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
47649-22010	Stopper, Automatic Adjust Latch, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90201-10316	Washer, Plate(For Rear Brake Automatic Adjust Latch)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90206-10059	Washer, Wave(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90501-20225	Spring(For Rear Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90506-20199	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90506-20200	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90506-20201	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90506-22128	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90508-18145	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
90508-18146	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - 10.1979] (7610-7910)KR1#,TR1#)
