Search › Model › KP62
KP62

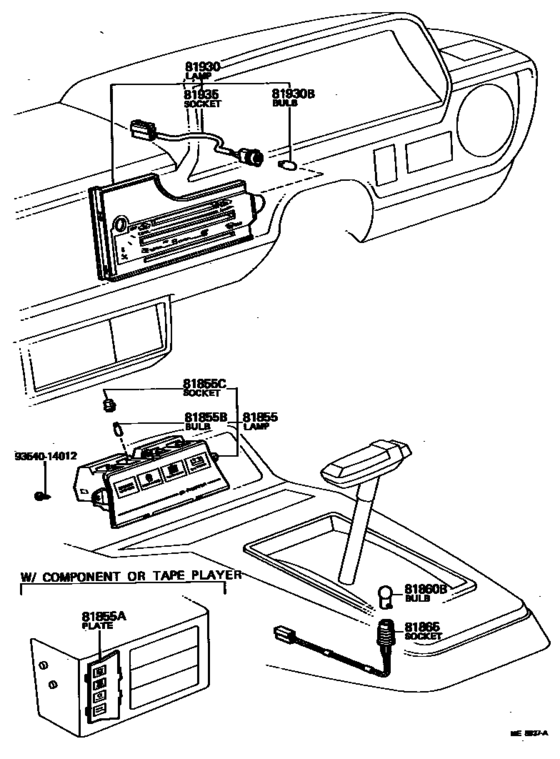

Indicator ([05.1980 - 08.1982] (8005-8208)) 8
| # | OEM | Part name |
|---|---|---|
| 81855 | 89592-10010 | Plate, Indicator Lamp (For Ok Monitor) |
| 81930 | 81930-10020-01 | Lamp Assy, Heater Control Indicator, No.1 |
| 81930 | 81930-10021 | Lamp Assy, Heater Control Indicator, No.1 |
| 81930 | 81936-30080 | Bulb, Heater Control Indicator Lamp |
| 81930 | 90981-11018 | Bulb, Position Indicator Lamp |
| 81935 | 81935-10031 | Socket And Wire, Heater Control Indicator Lamp |
| 81935 | 81939-10020 | Socket And Wire, Heater Control Indicator Lamp |
| 9354014012 | 93540-14012 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 81930-10020-01 | Lamp Assy, Heater Control Indicator, No.1 | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 81930-10021 | Lamp Assy, Heater Control Indicator, No.1 | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 81935-10031 | Socket And Wire, Heater Control Indicator Lamp | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 81936-30080 | Bulb, Heater Control Indicator Lamp | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 81939-10020 | Socket And Wire, Heater Control Indicator Lamp | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 89592-10010 | Plate, Indicator Lamp (For Ok Monitor) | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 90981-11018 | Bulb, Position Indicator Lamp | Indicator ([05.1980 - 08.1982] (8005-8208)) |
| 93540-14012 | Screw | Indicator ([05.1980 - 08.1982] (8005-8208)) |
