Search › Model › KP62
KP62

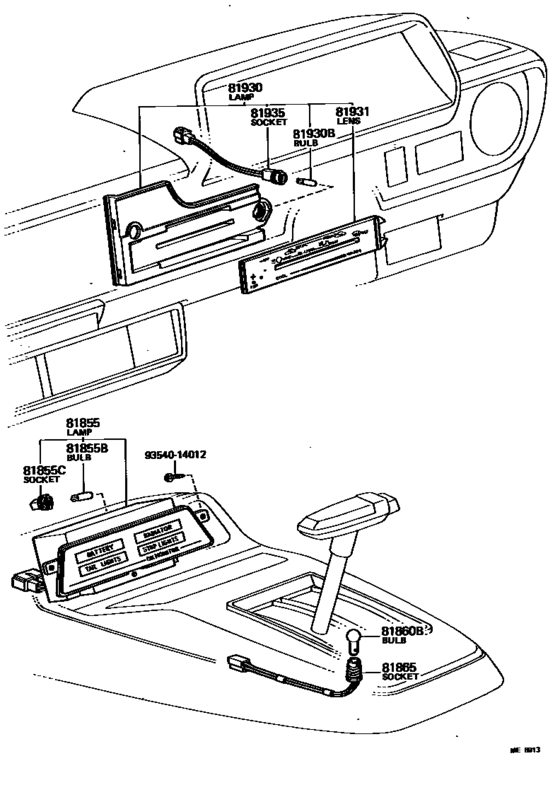

Indicator ([02.1978 - 05.1980] (7802-8005)) 8
| # | OEM | Part name |
|---|---|---|
| 81930 | 81930-10020-01 | Lamp Assy, Heater Control Indicator, No.1 |
| 81930 | 81930-10021 | Lamp Assy, Heater Control Indicator, No.1 |
| 81930 | 81936-30080 | Bulb, Heater Control Indicator Lamp |
| 81930 | 90981-11018 | Bulb, Position Indicator Lamp |
| 81931 | 81931-10020 | Lens, Heater Control Indicator |
| 81935 | 81935-10031 | Socket And Wire, Heater Control Indicator Lamp |
| 81935 | 81939-10020 | Socket And Wire, Heater Control Indicator Lamp |
| 9354014012 | 93540-14012 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 81930-10020-01 | Lamp Assy, Heater Control Indicator, No.1 | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 81930-10021 | Lamp Assy, Heater Control Indicator, No.1 | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 81931-10020 | Lens, Heater Control Indicator | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 81935-10031 | Socket And Wire, Heater Control Indicator Lamp | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 81936-30080 | Bulb, Heater Control Indicator Lamp | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 81939-10020 | Socket And Wire, Heater Control Indicator Lamp | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 90981-11018 | Bulb, Position Indicator Lamp | Indicator ([02.1978 - 05.1980] (7802-8005)) |
| 93540-14012 | Screw | Indicator ([02.1978 - 05.1980] (7802-8005)) |
