Search › Model › KP62

KP62

Toyota STARLET · 1978 · 3,680 parts · 224 categories

3,680 items

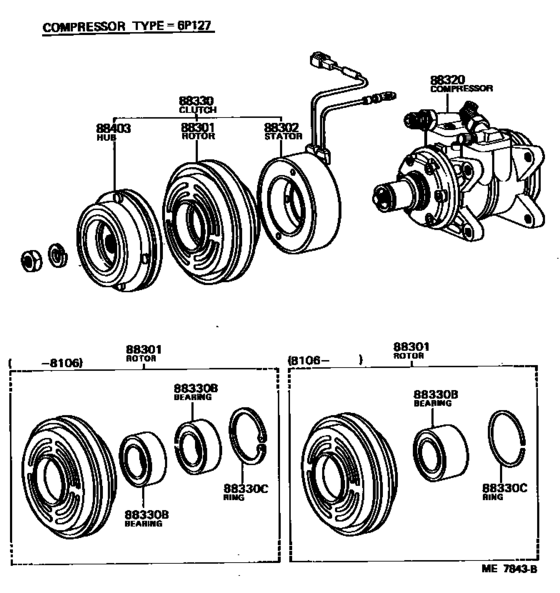

Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- )) 23

#	OEM	Part name
88301	88412-12040	Rotor Sub-Assy, Magnet Clutch
88301	88412-14020	Rotor Sub-Assy, Magnet Clutch
88301	88412-36030	Rotor Sub-Assy, Magnet Clutch
88301	88412-20060	Rotor Sub-Assy, Magnet Clutch
88302	88411-14020	Stator Sub-Assy, Magnet Clutch
88302	88411-14050	Stator Sub-Assy, Magnet Clutch
88302	88411-22040	Stator Sub-Assy, Magnet Clutch
88320	88320-10030	Compressor Assy, Cooler
88320	88320-10040	Compressor Assy, Cooler
88320	88320-10041	Compressor Assy, Cooler
88330	88410-12080	Clutch Assy, Magnet
88330	88410-14090	Clutch Assy, Magnet
88330	88410-14100	Clutch Assy, Magnet
88330	88410-20130	Clutch Assy, Magnet
88330	90099-10117	Bearing, Magnet Clutch
88330	90099-10133	Bearing, Ball(For Clutch Pully)
88330	90099-07094	Ring, Snap (For Magnet Clutch)
88330	90099-07114	Ring, Snap (For Magnet Clutch)
88403	88403-14030	Hub Sub-Assy, Magnet Clutch
88403	88403-12030	Hub Sub-Assy, Magnet Clutch
88403	88403-22030	Hub Sub-Assy, Magnet Clutch
88403	88403-26030	Hub Sub-Assy, Magnet Clutch
88403	88403-30270	Hub Sub-Assy, Magnet Clutch

OEM	Part name	Category
88320-10030	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88320-10040	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88320-10041	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88403-12030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88403-14030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88403-22030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88403-26030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88403-30270	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88410-12080	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88410-14090	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88410-14100	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88410-20130	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88411-14020	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88411-14050	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88411-22040	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88412-12040	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88412-14020	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88412-20060	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
88412-36030	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
90099-07094	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
90099-10117	Bearing, Magnet Clutch	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))
90099-10133	Bearing, Ball(For Clutch Pully)	Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- ))

Source: Public OEM parts-catalog data
Variants: 1 / 45
Category: 224
Collected: 2026-08-04
