Search › Model › KP61V

KP61V

Toyota STARLET · 1982 · 3,858 parts · 197 categories

3,858 items

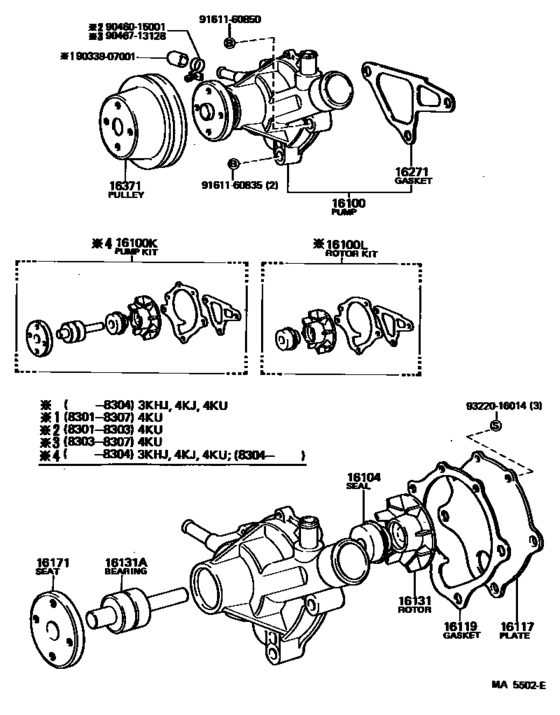

Water Pump ([02.1978 - ] (7802- )) 32

#	OEM	Part name
16100	16100-19015	Pump Assy, Engine Water
16100	16100-19017	Pump Assy, Engine Water
16100	16100-19016	Pump Assy, Engine Water
16100	04161-13011	Pump Kit, Water
16100	04161-13013	Pump Kit, Water
16100	04161-13012	Pump Kit, Water
16100	04161-24021	Pump Kit, Water
16100	04162-13012	Rotor Kit, Water Pump
16100	04162-13013	Rotor Kit, Water Pump
16104	16104-15020	Seal Set, Water Pump
16104	16104-41111	Seal Set, Water Pump
16104	16104-41112	Seal Set, Water Pump
16117	16117-13010	Plate, Water Pump
16117	16117-13011	Plate, Water Pump
16119	16124-22011	Gasket, Water Pump Body
16119	16124-24015	Gasket, Water Pump Body
16119	16124-22012	Gasket, Water Pump Body
16119	16124-22013	Gasket, Water Pump Body
16131	16131-13010	Rotor, Water Pump
16131	16131-13011	Rotor, Water Pump
16131	90369-30063	Bearing, Water Pump
16171	16171-24031	Seat, Water Pump Pulley
16271	16271-13021	Gasket, Water Pump
16271	16271-13030	Gasket, Water Pump
16371	16371-24050	Pulley, Fan
9033907001	90339-07001	Plug, Heater Water
9046015001	90460-15001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046015001	96112-10150	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713128	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161160850	91611-60850	Bolt(For Rocker Support Set)
9322016014	93220-16014	SCREW

OEM	Part name	Category
04161-13011	Pump Kit, Water	Water Pump ([02.1978 - ] (7802- ))
04161-13012	Pump Kit, Water	Water Pump ([02.1978 - ] (7802- ))
04161-13013	Pump Kit, Water	Water Pump ([02.1978 - ] (7802- ))
04161-24021	Pump Kit, Water	Water Pump ([02.1978 - ] (7802- ))
04162-13012	Rotor Kit, Water Pump	Water Pump ([02.1978 - ] (7802- ))
04162-13013	Rotor Kit, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16100-19015	Pump Assy, Engine Water	Water Pump ([02.1978 - ] (7802- ))
16100-19016	Pump Assy, Engine Water	Water Pump ([02.1978 - ] (7802- ))
16100-19017	Pump Assy, Engine Water	Water Pump ([02.1978 - ] (7802- ))
16104-15020	Seal Set, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16104-41111	Seal Set, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16104-41112	Seal Set, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16117-13010	Plate, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16117-13011	Plate, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16124-22011	Gasket, Water Pump Body	Water Pump ([02.1978 - ] (7802- ))
16124-22012	Gasket, Water Pump Body	Water Pump ([02.1978 - ] (7802- ))
16124-22013	Gasket, Water Pump Body	Water Pump ([02.1978 - ] (7802- ))
16124-24015	Gasket, Water Pump Body	Water Pump ([02.1978 - ] (7802- ))
16131-13010	Rotor, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16131-13011	Rotor, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16171-24031	Seat, Water Pump Pulley	Water Pump ([02.1978 - ] (7802- ))
16271-13021	Gasket, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16271-13030	Gasket, Water Pump	Water Pump ([02.1978 - ] (7802- ))
16371-24050	Pulley, Fan	Water Pump ([02.1978 - ] (7802- ))
90339-07001	Plug, Heater Water	Water Pump ([02.1978 - ] (7802- ))
90369-30063	Bearing, Water Pump	Water Pump ([02.1978 - ] (7802- ))
90460-15001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Water Pump ([02.1978 - ] (7802- ))
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Water Pump ([02.1978 - ] (7802- ))
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Water Pump ([02.1978 - ] (7802- ))
91611-60850	Bolt(For Rocker Support Set)	Water Pump ([02.1978 - ] (7802- ))
93220-16014	SCREW	Water Pump ([02.1978 - ] (7802- ))
96112-10150	Clamp Or Clip, Hose(For Water By-Pass Hose)	Water Pump ([02.1978 - ] (7802- ))
