Search › Model › KP61V

KP61V

Toyota STARLET · 1982 · 3,858 parts · 197 categories

3,858 items

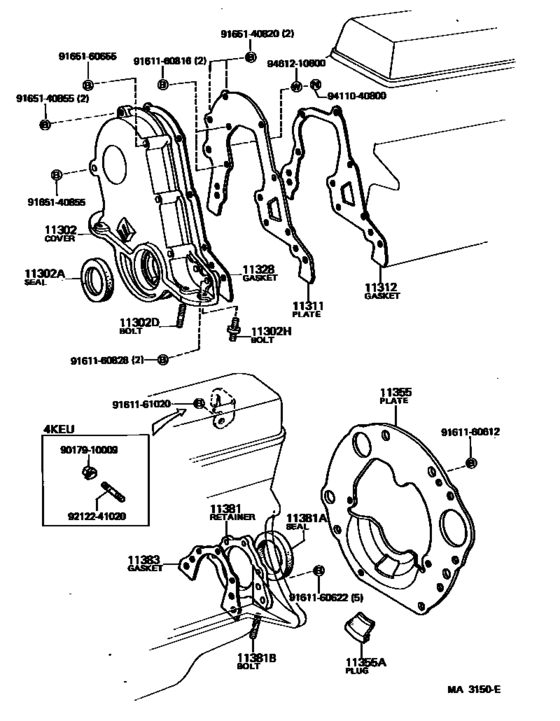

Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- )) 37

#	OEM	Part name
11302	11321-13040	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-13041	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-38013	Seal, Oil(For Camshaft Housing)
11302	90311-38022	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90116-06012	Bolt, Stud(For Timing Gear Cover)
11302	90116-06006	Bolt, Stud(For Timing Gear Cover)
11311	11311-13010	Plate, Front End
11312	11312-13011	Gasket, Front End Plate
11312	11312-13050	Gasket, Front End Plate
11328	11328-13011	Gasket, Timing Gear Or Chain Cover
11328	11328-13030	Gasket, Timing Gear Or Chain Cover
11355	11355-13011	Plate, Rear End
11355	11355-13012	Plate, Rear End
11381	11381-13010	Retainer, Engine Rear Oil Seal
11381	11381-13011	Retainer, Engine Rear Oil Seal
11381	90311-70001	Seal, Engine Rear Oil
11381	90311-70007	Seal, Engine Rear Oil
11381	90311-70004	Seal, Engine Rear Oil
11381	90116-06035	Bolt, Stud(For Timing Gear Cover)
11383	11383-13010	Gasket, Engine Rear Oil Seal Retainer
9017910009	90179-10009	NUT
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160622	91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165140820	91651-40820	Bolt
9165140855	91651-40855	New Genuine Part
9165160655	91651-60655	BOLT
9212241020	92122-41020	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
11311-13010	Plate, Front End	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11312-13011	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11312-13050	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11321-13040	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11321-13041	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11328-13011	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11328-13030	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11355-13011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11355-13012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11381-13010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11381-13011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
11383-13010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90116-06006	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90116-06012	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90116-06035	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90179-10009	NUT	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-38013	Seal, Oil(For Camshaft Housing)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-38022	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-70001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-70004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
90311-70007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91611-G0612	Bolt	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91651-40820	Bolt	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91651-40855	New Genuine Part	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
91651-60655	BOLT	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
92122-41020	New Genuine Part	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
94110-40800	Nut(For Steering Damper)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
94612-10800	Washer, Plate(For Repair Actuator Set)	Timing Gear Cover & Rear End Plate ([02.1978 - ] (7802- ))
