KP60

Toyota STARLET · 1978 · 4,807 parts · 154 categories

← Back to categories

4,807 items

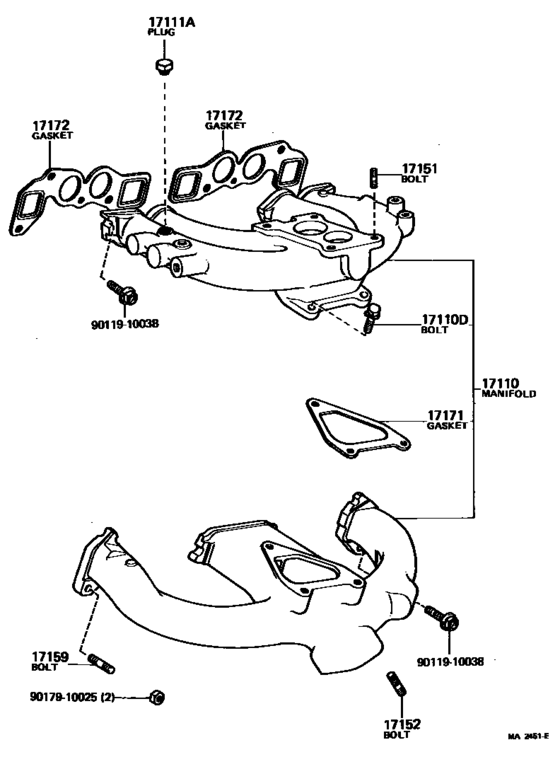

Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH) 19

#	OEM	Part name
17110	17110-24072	Manifold Assy
17110	17110-24074	Manifold Assy
17110	17172-13050	Gasket, Manifold To Cylinder Head
17110	90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17110	90179-10051	NUT
17110	90179-10175	NUT
17110	91611-60822	Bolt
17111	90345-51025	Plug, W/head Taper Screw, No.2
17151	90116-08010	Bolt, Stud(For Manifold To Carburetor)
17152	90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	92122-41028	Bolt, Stud(For Manifold To Cylinder Head)
17171	17171-13040	Gasket, Intake To Exhaust Manifold
17171	17171-13050	Gasket, Intake To Exhaust Manifold
17171	17171-24010	Gasket, Intake To Exhaust Manifold
17172	17172-13020	Gasket, Manifold To Cylinder Head
17172	17172-13030	Gasket, Manifold To Cylinder Head
17172	17172-13021	Gasket, Manifold To Cylinder Head
9011910038	90119-10038	New Genuine Part
9017910025	90179-10025	NUT

OEM	Part name	Category
17110-24072	Manifold Assy	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17110-24074	Manifold Assy	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17171-13040	Gasket, Intake To Exhaust Manifold	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17171-13050	Gasket, Intake To Exhaust Manifold	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17171-24010	Gasket, Intake To Exhaust Manifold	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17172-13020	Gasket, Manifold To Cylinder Head	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17172-13021	Gasket, Manifold To Cylinder Head	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17172-13030	Gasket, Manifold To Cylinder Head	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
17172-13050	Gasket, Manifold To Cylinder Head	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90116-08010	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90119-10038	New Genuine Part	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90179-10025	NUT	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90179-10051	NUT	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90179-10175	NUT	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
90345-51025	Plug, W/head Taper Screw, No.2	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
91611-60822	Bolt	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
92122-41028	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1981 - ] (7802-8108) ; (8108- )2K,3KH)
