Search › Model › KP60

KP60

Toyota STARLET · 1978 · 4,807 parts · 154 categories
KP60 ×

← Back to categories

4,807 items

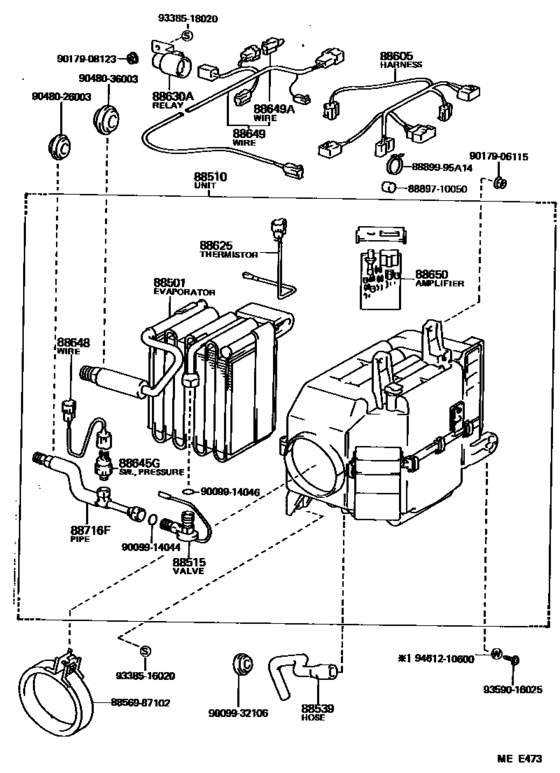

Heating & Air Conditioning - Cooler Unit ([08.1982 - ] (8208- )RHD) 38
#OEMPart name
88501 88501-10070 Evaporator Sub-Assy, Cooler, No.1
88510 88510-10031 Unit Assy, Cooler
88510 88510-10090 Unit Assy, Cooler
88510 88510-10110 Unit Assy, Cooler
88515 88515-16020 Valve, Cooler Expansion
88515 88515-16030 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88539 88539-10030 Hose, Cooler Unit Drain, No.1
88539 88539-10060 Hose, Cooler Unit Drain, No.1
88605 88605-10080 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-10130 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-10150 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-12070 Thermistor, Cooler, No.1
88630 88630-10020 Relay Assy, Cooler
88630 88630-10030 Relay Assy, Cooler
88645 88645-12020 Switch, Pressure
88648 88648-10160 Wiring, Cooler, No.1
88649 88648-10100 Wiring, Cooler, No.2
88649 88648-10180 Wiring, Cooler, No.2
88649 88648-10110 Wiring, Cooler, No.3
88650 88650-10030 Amplifier Assy, Cooler Stabilizer
88650 88650-16010 Harness Sub-Assy, Cooler Wiring, No.1
88716 88716-10360 Pipe, Cooler Refrigerant Liquid, F
8889995 88899-95A14 Cover, Evaporator
8856987102 88569-87102 Clamp (for Cooler Relay)
8889710050 88897-10050 Valve, Cooler Magnet
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9009932106 90099-32106 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338518020 93385-18020 New Genuine Part
9359016025 93590-16025 New Genuine Part
9461210600 94612-10600 New Genuine Part
