KP50

Toyota PUBLICA · 1976 · 3,048 parts · 146 categories

3,048 items

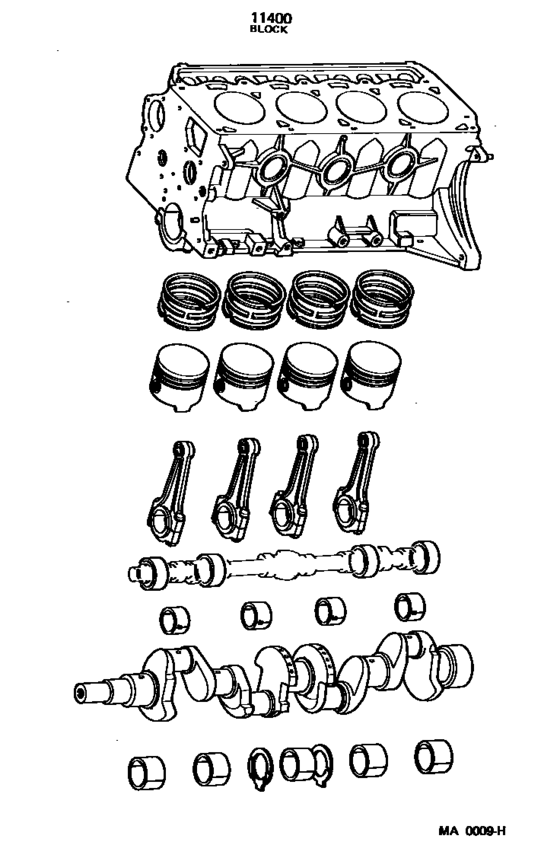

Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ) 20

#	OEM	Part name
11400	11400-24020	Block Assy, Short
11400	11312-13050	Gasket, Front End Plate
11400	11311-13010	Plate, Front End
11400	91611-B0816	Bolt
11400	11328-13030	Gasket, Timing Gear Or Chain Cover
11400	12302-13012	Bracket, Engine Mounting, Front No.1 Lh
11400	11400-24021	Block Assy, Short
11400	12302-22023	Bracket, Engine Mounting, Front No.1 Lh
11400	12302-87102	Bracket, Engine Mounting, Front No.1 Lh
11400	91611-60828	Bolt(For Clutch Release Cylinder Setting)
11400	94130-00802	Nut, No.1 (For Center Support Bearing)
11400	91651-40820	Bolt
11400	91651-40855	New Genuine Part
11400	91651-60655	BOLT
11400	94612-10800	Washer, Plate(For Repair Actuator Set)
11400	94130-61200	Nut
11400	11321-13041	Cover Sub-Assy, Timing Chain Or Belt
11400	90201-12208	WASHER
11400	90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)
11400	94511-01200	WASHER

OEM	Part name	Category
11311-13010	Plate, Front End	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
11312-13050	Gasket, Front End Plate	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
11321-13041	Cover Sub-Assy, Timing Chain Or Belt	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
11328-13030	Gasket, Timing Gear Or Chain Cover	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
11400-24020	Block Assy, Short	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
11400-24021	Block Assy, Short	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
12302-13012	Bracket, Engine Mounting, Front No.1 Lh	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
12302-22023	Bracket, Engine Mounting, Front No.1 Lh	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
12302-87102	Bracket, Engine Mounting, Front No.1 Lh	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
90201-12208	WASHER	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
91611-B0816	Bolt	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
91651-40820	Bolt	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
91651-40855	New Genuine Part	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
91651-60655	BOLT	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
94130-00802	Nut, No.1 (For Center Support Bearing)	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
94130-61200	Nut	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
94511-01200	WASHER	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
94612-10800	Washer, Plate(For Repair Actuator Set)	Short Block Assembly ([04.1969 - ] (6904- )KB,2K,3K,3KB#,3KHJ,3KU,4KJ)
