KP50

Toyota PUBLICA · 1976 · 3,048 parts · 146 categories
KP50 ×

← Back to categories

3,048 items

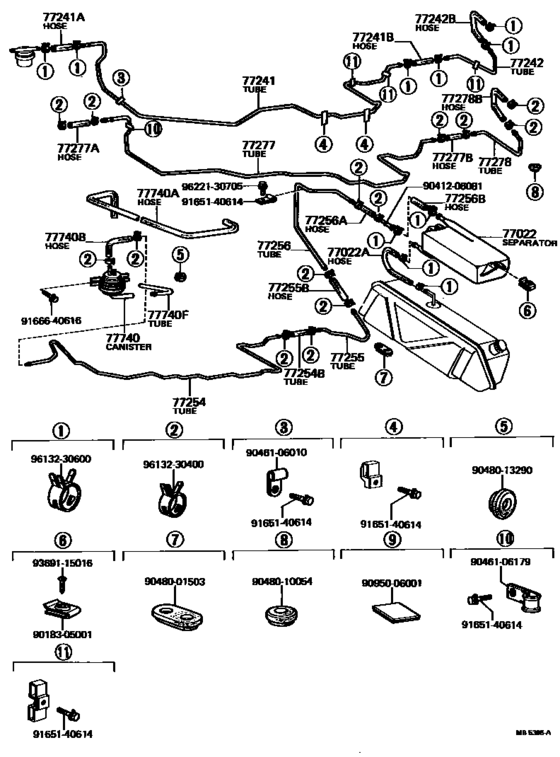

Fuel Tank & Tube ([01.1976 - 02.1978] (7601-7802)KP50) 47
#OEMPart name
77022 77267-10020 Separator Sub-Assy, Fuel Evaporative
77022 95331-06026 Hose, Fuel
77022 95333-06030 Hose, Fuel
77022 95332-06026 Hose, Fuel
77241 77251-10020 Tube, Fuel Main, No.1
77241 95331-06009 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77241 95332-06009 Hose, Fuel(For Fuel Evaporative Separator)
77241 95333-06010 Hose, Fuel
77242 77252-10030 Tube, Fuel Main, No.2
77242 95331-06022 Hose, Fuel, No.2 (For Main Tube, No.2)
77242 95332-06022 Hose, Fuel
77254 77261-10011 Tube, Fuel Emission, No.1
77254 95332-04008 Hose, Fuel, No.2 (For Emission Tube, No.1)
77254 95333-04010 Hose, Fuel(For Lpg Regulator)
77255 77263-10011 Tube, Fuel Emission, No.2
77255 95331-04007 Hose, Fuel, No.2 (For Emission Tube, No.2)
77256 77224-10044 Tube, Fuel Emission, No.3
77256 95331-04005 Hose, Fuel, No.1 (For Emission Tube, No.3) - FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
77256 95331-06006 Hose, Fuel Pipe, No.1 - FUEL, NO.3(FOR FUEL EXPANSION TANK)
77277 77255-10020 Tube, Fuel Return, No.1
77277 95332-04038 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95333-04040 Hose(For Fuel Pump To Fuel Tube)
77278 77256-10010 Tube, Fuel Return, No.2
77278 95331-04018 Hose, Fuel, No.2 (For Return Tube, No.2) - FUEL, NO.1 (FOR BREATHER TUBE)
77278 95333-04020 Hose, Lpg Injector
77740 77740-10011 Canister Assy, Charcoal
77740 90445-08091 Hose, Fuel, No.1(For Charcoal Canister)
77740 90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 95332-04017 Hose, Fuel, No.2(For Charcoal Canister)
77740 77264-10010 Tube, Fuel, No.1(For Charcoal Canister)
9018305001 90183-05001 New Genuine Part
9041206081 90412-06081 Hose Or Tube(For Fuel Evaporative Separator)
9046106010 90461-06010 New Genuine Part
9046106179 90461-06179 Clamp Or Clip(For Nozzle Leakage Pipe Set)
9048001503 90480-01503 New Genuine Part
9048010054 90480-10054 New Genuine Part
9048013290 90480-13290 Grommet(For Side Ventilator Control Rod)
9095006001 90950-06001 Protector, Front Side Panel, No.3
9165140614 91651-40614 Bolt
9166640616 91666-40616 New Genuine Part
9166640616 91661-60616 BOLT
9369115016 93691-15016 New Genuine Part
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9622130705 96221-30705 Clamp, Brake Tube, No.4
