KP50

Toyota PUBLICA · 1976 · 3,048 parts · 146 categories

3,048 items

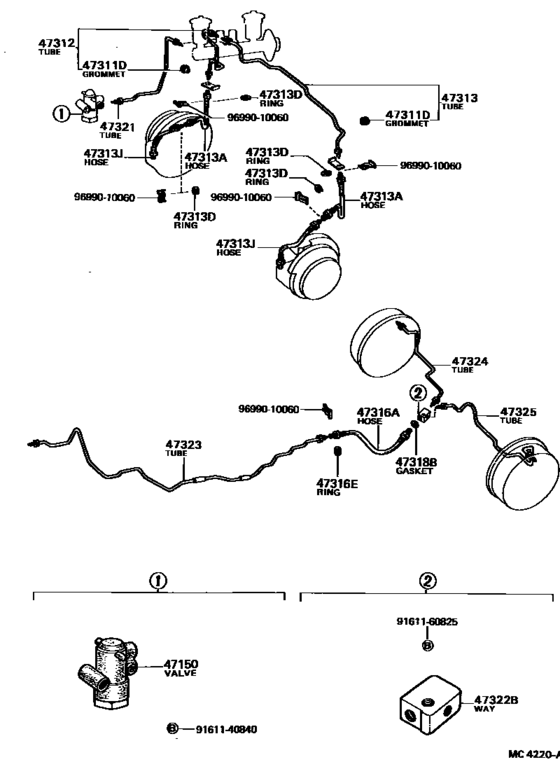

Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907)) 22

#	OEM	Part name
47150	47150-10010	Valve Assy, Proportioning
47311	90480-22210	Grommet(For Front Brake Tube)
47312	47313-10091	Tube, Front Brake, No.2
47313	47314-10082	Tube, Front Brake, No.3
47313	90947-02257	Hose, Flexible, No.1(For Front)
47313	96160-01200	Ring, E(For Clutch Release Cable)
47313	90947-02256	Hose, Flexible, No.2(For Front)
47313	96960-39405	Hose, Flexible, No.2(For Front)
47316	90947-02267	Hose, Clutch, No.1
47318	90430-10074	Gasket(For Oil Pressure Regulator)
47321	47315-10020	Tube, Rear Brake, No.1
47322	90413-10090	Way, No.2(For Rear Brake Tube)
47323	47316-10104	Tube, Rear Brake, No.3
47324	47318-10031	Tube, Rear Brake, No.4
47324	47318-10051	Tube, Rear Brake, No.4
47325	47319-10032	Tube, Rear Brake, No.5
47325	47319-10051	Tube, Rear Brake, No.5
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9699010060	96990-10060	CLIP

OEM	Part name	Category
47150-10010	Valve Assy, Proportioning	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47313-10091	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47314-10082	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47315-10020	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47316-10104	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47318-10031	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47318-10051	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47319-10032	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
47319-10051	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90413-10090	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90480-22210	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90947-02256	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90947-02257	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
90947-02267	Hose, Clutch, No.1	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
91611-40840	New Genuine Part	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
91611-60840	BOLT	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
96960-39405	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
96990-10060	CLIP	Brake Tube & Clamp ([11.1975 - 07.1979] (7310-7511)KP30,31 ; (7511-7907))
