Search › Model › KP50

KP50

Toyota PUBLICA · 1976 · 3,048 parts · 146 categories

3,048 items

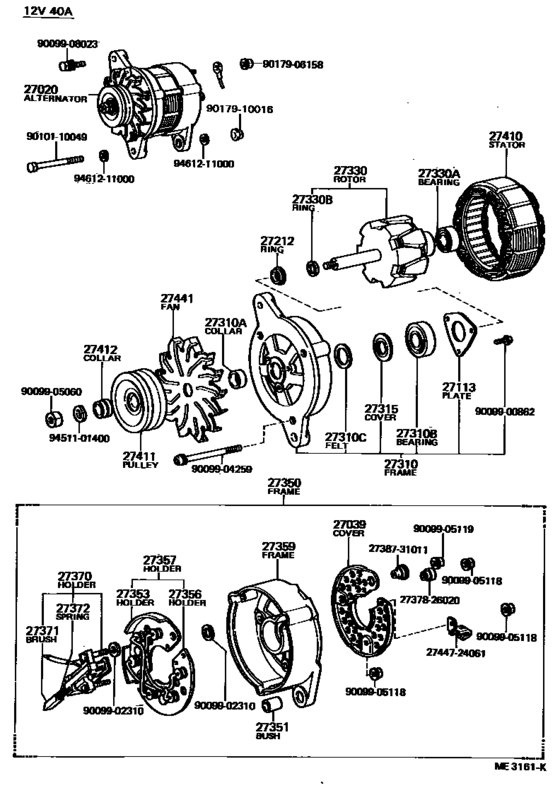

Alternator ([04.1974 - 09.1978] (7404-7809)) 52

#	OEM	Part name
27020	27020-24062	Alternator Assy
27020	27020-13060	Alternator Assy
27039	27039-26020	Cover, Alternator Rear End
27113	27312-31011	Plate, Bearing Retainer, Alternator
27212	27212-39050	Ring, Space(For Alternator Rotor)
27310	27310-24030	Frame Assy, Drive End, Alternator
27310	27310-24070	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10013	Bearing(For Alternator Drive End Frame)
27310	90099-02004	Felt(For Alternator Drive End Frame)
27315	27313-31011	Cover, Alternator Felt, Inner No.1
27330	27330-33010	Rotor Assy, Alternator
27330	97110-06201	Bearing(For Alternator Rotor)
27330	90099-07048	Ring, Snap(For Alternator Rotor)
27350	27350-24062	Frame Assy, Rectifier End
27350	27350-13010	Frame Assy, Rectifier End
27351	27351-25010	Bush(For Alternator Rectifier End Frame)
27353	27353-26020	Holder, W/rectifier Positive, Alternator
27353	27353-26030	Holder, W/rectifier Positive, Alternator
27356	27356-26020	Holder, W/rectifier Negative, Alternator
27356	27356-26030	Holder, W/rectifier Negative, Alternator
27357	27357-26020	Holder, Alternator, W/rectifier
27357	27357-26030	Holder, Alternator, W/rectifier
27359	27359-41041	Frame, Alternator Rectifier End
27359	27359-36061	Frame, Alternator Rectifier End
27370	27370-45061	Holder Assy, Alternator Brush
27370	27370-44070	Holder Assy, Alternator Brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-26020	Stator Assy, Alternator
27410	27410-26030	Stator Assy, Alternator
27411	27411-31042	Pulley, Alternator
27412	27412-44030	Ring, Space(For Alternator Rotor)
27412	27412-44031	Collar, Spacer(For Alternator Pulley)
27441	27441-34030	Fan, Alternator
2737826020	27378-26020	Insulator, Alternator, No.1
2738731011	27387-31011	Insulator, Terminal
2744724061	27447-24061	Clip, Alternator Cord
9009900862	90099-00862	New Genuine Part
9009902310	90099-02310	New Genuine Part
9009904259	90099-04259	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009908023	90099-08023	New Genuine Part
9010110049	90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110049	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9451101400	94511-01400	WASHER
9461211000	94612-11000	Plate, Spring Set

OEM	Part name	Category
27020-13060	Alternator Assy	Alternator ([04.1974 - 09.1978] (7404-7809))
27020-24062	Alternator Assy	Alternator ([04.1974 - 09.1978] (7404-7809))
27039-26020	Cover, Alternator Rear End	Alternator ([04.1974 - 09.1978] (7404-7809))
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([04.1974 - 09.1978] (7404-7809))
27310-24030	Frame Assy, Drive End, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27310-24070	Frame Assy, Drive End, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27312-31011	Plate, Bearing Retainer, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27313-31011	Cover, Alternator Felt, Inner No.1	Alternator ([04.1974 - 09.1978] (7404-7809))
27330-33010	Rotor Assy, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27350-13010	Frame Assy, Rectifier End	Alternator ([04.1974 - 09.1978] (7404-7809))
27350-24062	Frame Assy, Rectifier End	Alternator ([04.1974 - 09.1978] (7404-7809))
27351-25010	Bush(For Alternator Rectifier End Frame)	Alternator ([04.1974 - 09.1978] (7404-7809))
27353-26020	Holder, W/rectifier Positive, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27353-26030	Holder, W/rectifier Positive, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27356-26020	Holder, W/rectifier Negative, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27356-26030	Holder, W/rectifier Negative, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27357-26020	Holder, Alternator, W/rectifier	Alternator ([04.1974 - 09.1978] (7404-7809))
27357-26030	Holder, Alternator, W/rectifier	Alternator ([04.1974 - 09.1978] (7404-7809))
27359-36061	Frame, Alternator Rectifier End	Alternator ([04.1974 - 09.1978] (7404-7809))
27359-41041	Frame, Alternator Rectifier End	Alternator ([04.1974 - 09.1978] (7404-7809))
27370-44070	Holder Assy, Alternator Brush	Alternator ([04.1974 - 09.1978] (7404-7809))
27370-45061	Holder Assy, Alternator Brush	Alternator ([04.1974 - 09.1978] (7404-7809))
27371-31011	Brush, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27372-31011	Spring, Alternator Brush	Alternator ([04.1974 - 09.1978] (7404-7809))
27378-26020	Insulator, Alternator, No.1	Alternator ([04.1974 - 09.1978] (7404-7809))
27387-31011	Insulator, Terminal	Alternator ([04.1974 - 09.1978] (7404-7809))
27410-26020	Stator Assy, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27410-26030	Stator Assy, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27411-31042	Pulley, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([04.1974 - 09.1978] (7404-7809))
27412-44030	Ring, Space(For Alternator Rotor)	Alternator ([04.1974 - 09.1978] (7404-7809))
27412-44031	Collar, Spacer(For Alternator Pulley)	Alternator ([04.1974 - 09.1978] (7404-7809))
27441-34030	Fan, Alternator	Alternator ([04.1974 - 09.1978] (7404-7809))
27447-24061	Clip, Alternator Cord	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-00862	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-02004	Felt(For Alternator Drive End Frame)	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-02310	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-04259	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-05118	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-05119	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-07048	Ring, Snap(For Alternator Rotor)	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-08023	New Genuine Part	Alternator ([04.1974 - 09.1978] (7404-7809))
90099-10013	Bearing(For Alternator Drive End Frame)	Alternator ([04.1974 - 09.1978] (7404-7809))
90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([04.1974 - 09.1978] (7404-7809))
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([04.1974 - 09.1978] (7404-7809))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([04.1974 - 09.1978] (7404-7809))
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([04.1974 - 09.1978] (7404-7809))
90179-10132	Nut	Alternator ([04.1974 - 09.1978] (7404-7809))
94511-01400	WASHER	Alternator ([04.1974 - 09.1978] (7404-7809))
94612-11000	Plate, Spring Set	Alternator ([04.1974 - 09.1978] (7404-7809))
97110-06201	Bearing(For Alternator Rotor)	Alternator ([04.1974 - 09.1978] (7404-7809))
